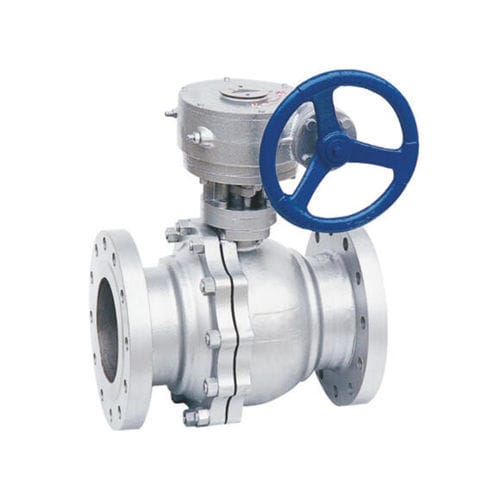

Valve with seal BV-YGballwith handwheelshut-off
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Operation
- with handwheel
- Function
- shut-off
- Media
- for chemical products, for water, for oil, for hydrocarbons, for diesel, for gasoline, fuel oil, for alternative fuels, for LPG, for petroleum
- Body
- stainless steel, carbon steel, steel, metal
- Applications
- for oil industry applications
- Number of channels
- 2-way
- Fluid specification
- for corrosive fluids, for aggressive media, for abrasive fluids, for fluids with lubricating properties, for hazardous fluids, for toxic fluids
- Associated function
- transfer
- Other characteristics
- with seal
- DN
Max.: 1,200 mm
(47.244 in)Min.: 50 mm
(1.969 in)- Pressure
Max.: 420 bar
(6,091.6 psi)Min.: 16 bar
(232.1 psi)
Description
hard sealing ball valve
body material: Carbon steel /Stainless steel / Alloy steel /Special ( Monel /Inconel）
end connection: RF/BW
operation: Hand wheel / Gear/ motor/pneumatic actuators
product overview:Athena hard seal fixed ball valve is split structure. This series of ball valves is designed for 150LB to 2500LB, with temperatures ranging from -46 to 450 ° C. Fixed metal hard seal ball valve seat for metal hard seal structure, after hardening treatment with high temperature resistance and wear resistance characteristics, suitable for high temperature, corrosive medium or granular medium working conditions.
