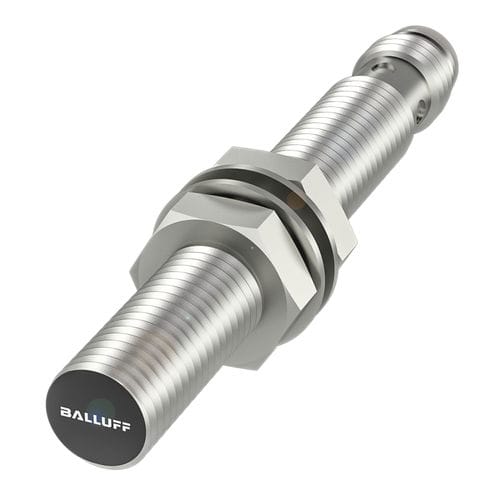

Inductive proximity sensor BES003PcylindricalM8PNP
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- PNP
- Supply voltage
- 24VDC, 12VDC, 15VDC
- Mounting
- flush
- Material
- brass
- Protection level
- IP68
- Length
60 mm
(2.36 in)- Width
8 mm
(0.31 in)- Measuring range
2 mm
(0.08 in)- Process temperature
Min.: -25 °C
(-13 °F)Max.: 70 °C
(158 °F)
Description
Dimension
Style
M8x1
Installation
for flush mounting
Switching output
PNP normally open (NO)
Switching frequency
5000 Hz
Housing material
Brass, Nickel-free coated
Material sensing surface
PBT
Connection
Connector, M8x1-Male, 3-pin
Operating voltage Ub
IP rating
Approval/Conformity
EAC
cULus
CE
WEEE
