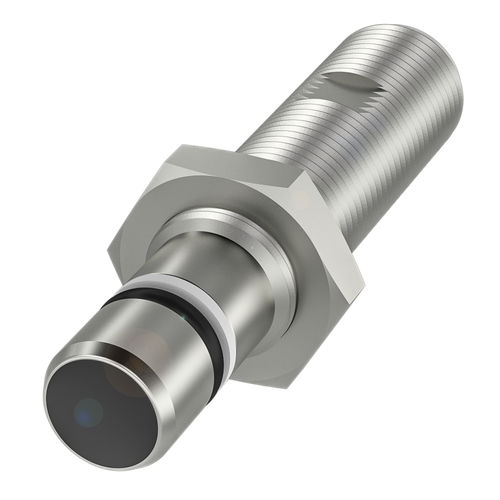

Inductive proximity sensor BHS002YcylindricalM12PNP
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M12
- Output signal
- PNP
- Electrical connection
- M12 connector
- Supply voltage
- 24 Vdc, 15VDC, 12 Vdc
- Mounting
- flush
- Material
- stainless steel
- Protection level
- IEC, IP68
- Measuring range
1.5 mm
(0.06 in)- Process temperature
Max.: 80 °C
(176 °F)Min.: -25 °C
(-13 °F)
Description
Dimension
Ø 12 x 56 mm
Style
M12x1
Installation
for flush mounting
Installation length from contact surface
17.9 mm
Switching output
PNP normally open (NO)
Switching frequency
2000 Hz
Housing material
Stainless steel
Material sensing surface
EP
Connection
Connector, M12x1-Male, 4-pin
Operating voltage Ub
10...30 VDC
Pressure rating max.
500 bar
IP rating per IEC 60529
IP68
Approval/Conformity
CE
UKCA
cULus
WEEE
