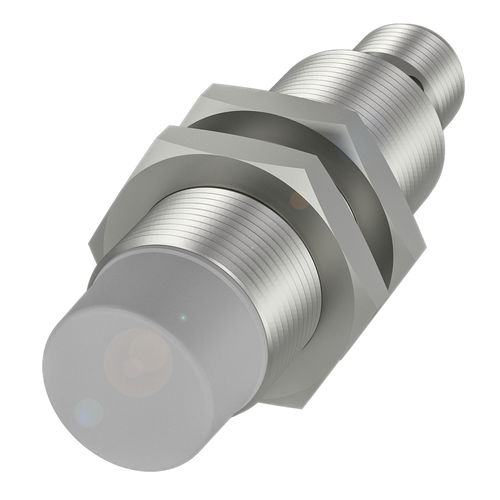

Inductive proximity sensor BAW0029cylindricalM1824VDC
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Supply voltage
- 24VDC, 12VDC, 15VDC
- Mounting
- non-flush
- Material
- brass
- Protection level
- IEC, IP67
- Length
65 mm
(2.56 in)- Width
18 mm
(0.71 in)- Measuring range
Max.: 16 mm
(0.63 in)Min.: 4 mm
(0.16 in)- Process temperature
Max.: 60 °C
(140 °F)Min.: 10 °C
(50 °F)
Description
Dimension
Style
M18x1
Installation
non-flush
Analog output
Analog, voltage 0…10 V
Analog, temperature
Output characteristic
falling on approach
Limit frequency –3 dB
500 Hz
Repeat accuracy per BWN
±200 µm
Non-linearity max.
±360 µm
Housing material
Brass, nickel-plated
Material sensing surface
PBT
Connection
Connector, M12x1-Male, 4-pin
Operating voltage Ub
IP rating per IEC 60529
Approval/Conformity
CE
UKCA
cULus
WEEE
