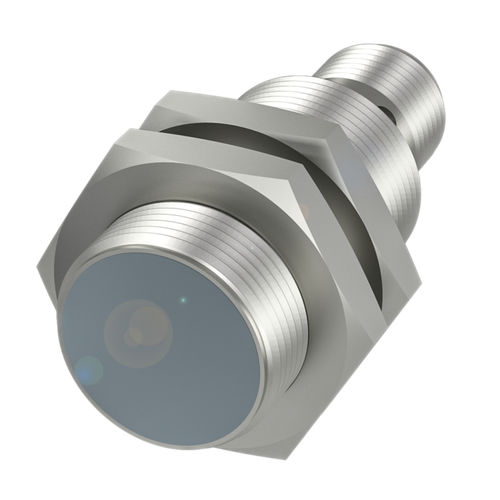

Inductive proximity sensor BAW001UcylindricalM1824VDC
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M18
- Supply voltage
- 24VDC, 12VDC, 15VDC
- Mounting
- flush
- Material
- brass
- Protection level
- IEC, IP67
- Length
44.5 mm
(1.75 in)- Width
18 mm
(0.71 in)- Measuring range
Min.: 1 mm
(0.04 in)Max.: 5 mm
(0.2 in)- Process temperature
Min.: -10 °C
(14 °F)Max.: 70 °C
(158 °F)
Description
Dimension
Style
M18x1
Installation
for flush mounting
Analog output
Analog, current 4…20 mA
Output characteristic
falling on approach
Limit frequency –3 dB
500 Hz
Repeat accuracy per BWN
±8 µm
Non-linearity max.
±120 µm
Housing material
Brass, nickel-plated
Material sensing surface
PBT
Connection
Connector, M12x1-Male, 3-pin
Operating voltage Ub
IP rating per IEC 60529
Approval/Conformity
CE
UKCA
cULus
WEEE
