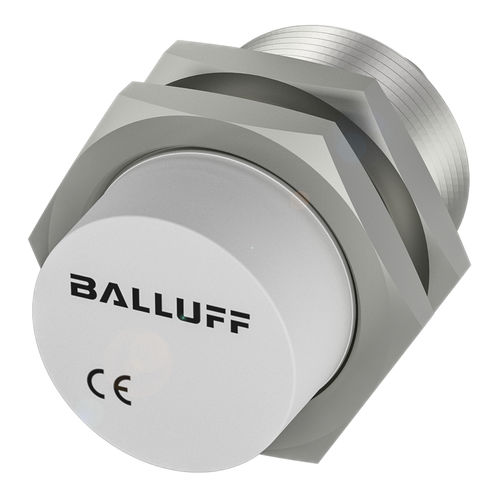

Inductive proximity sensor BAW002YcylindricalM3024VDC
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M30
- Supply voltage
- 24VDC, 12VDC, 15VDC
- Mounting
- non-flush
- Material
- brass
- Protection level
- IEC, IP67
- Length
57 mm
(2.24 in)- Width
30 mm
(1.18 in)- Measuring range
Max.: 15 mm
(0.59 in)Min.: 3 mm
(0.12 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -10 °C
(14 °F)
Description
Dimension
Style
M30x1.5
Installation
non-flush
Analog output
Analog, voltage 0...10 V
Output characteristic
falling on approach
Limit frequency –3 dB
350 Hz
Repeat accuracy per BWN
±12 µm
Non-linearity max.
±360 µm
Housing material
Brass, nickel-plated
Material sensing surface
PBT
Connection
Connector, M12x1-Male, 3-pin
Operating voltage Ub
IP rating per IEC 60529
Approval/Conformity
CE
UKCA
cULus
WEEE
