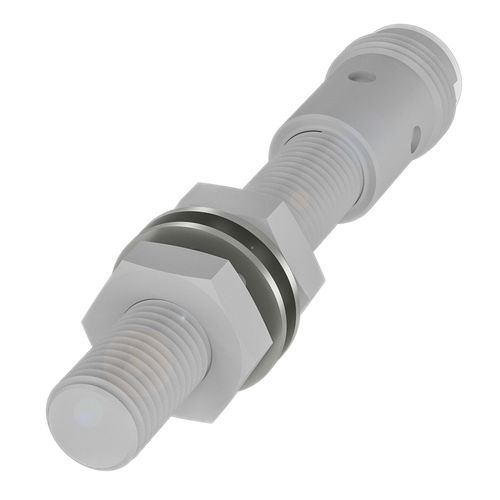

Inductive proximity sensor BES02N6cylindricalM8PNP
Add to favorites
Compare this product
Characteristics
- Technology
- inductive
- Shape
- cylindrical
- Diameter
- M8
- Output signal
- PNP
- Supply voltage
- 24VDC, 12VDC, 15VDC
- Mounting
- flush
- Material
- stainless steel, PTFE
- Protection level
- IEC, IP67
- Length
65 mm
(2.56 in)- Width
8 mm
(0.31 in)- Measuring range
2 mm
(0.08 in)- Process temperature
Max.: 70 °C
(158 °F)Min.: -25 °C
(-13 °F)
Description
Dimension
Style
M8x1
Installation
for flush mounting
Switching output
PNP normally open (NO)
Switching frequency
750 Hz
Housing material
Stainless steel, PTFE coated
Material sensing surface
Stainless steel, coated
Connection
Connector, M12x1-Male, 3-pin
Operating voltage Ub
Pressure rating max.
80 bar
IP rating per IEC 60529
Approval/Conformity
CE
UKCA
cULus
WEEE
Additional features
Housing resistant to weld spatter
