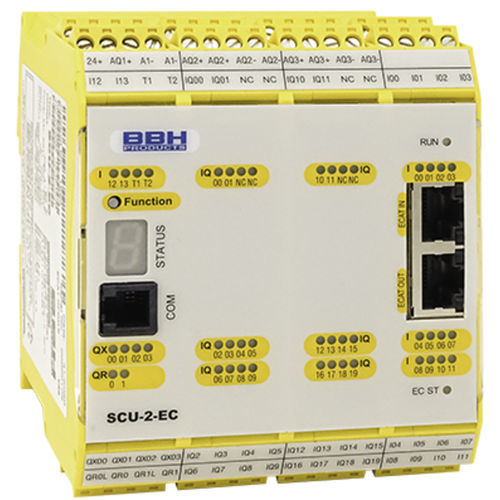

Digital master module SCU-2-EC

EtherCATsafe digital inputswith relay output

Open programmable and configurable FSoE master unit for operation on EtherCAT networks 14 safe digital inputs up to 20 safe digital I/O's 2 Realy outputs Fast channel task with guaranteed response time of 4 ms Easy integration of safe drives (Safe Drive Profile) Safety control suitable up to PL e (EN ISO 13849-1) or SIL3 (IEC 61508) Optional: kinematics module, PROFIsafe- / FSoE slave stack Ethernet-based fieldbus interface, safe / non-safe Memory card for safety program Characteristic of the module Connection of up to 32 FSoE slave modules Safe logic processing of input, output, status and activation signals Easy and transparent programming and parameterization in the EtherCAT environment via SafePLC2 Fast response time with integrated Fast channel task with guaranteed processing time of 4 ms Central or decentralized drive monitoring possible Complet set of drive monitoring for single axis and calculated axes (based on kinematics function) Temporary deterministic data communication and processing for safe position and speed functions via distributed sensor / multiples axes Specific profiles for process data exchange and central parameterization that can be adapted to converter / manufacture Safe cross communication (SMMC: Safe Master-Master Communication) for data exchange between FSoE masters via EAP STorage of safe parameters in SCU master unit Coded status display via front-side 7 segment display and status LEDs Multifunction button (Quit, Start, Reset), front-side
