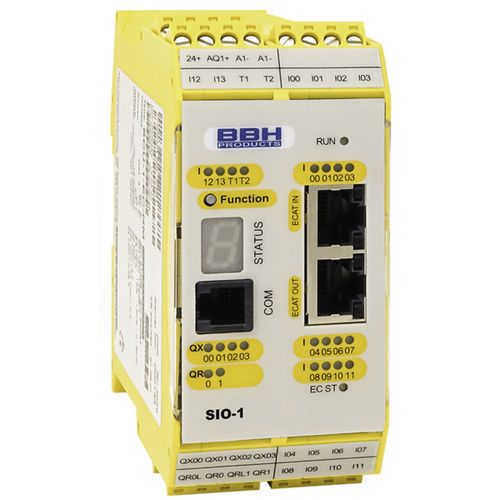

Digital I/O module SIO-1EtherCATwith relay outputdecentralized
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Interface
- EtherCAT
- Number of inputs/outputs
- with relay output
- Type
- decentralized, safety
- Other characteristics
- slave
Description
FSoE I/O slave module for decentralized extension of an FSoE master module (SCUmaster - modules)
14 Safe digital inputs
2 Relay outputs
2 Pulse outputs
2/4 pn- or pp-switching outputs
Safety control suitable up to PL e (EN ISO 13849-1) or SIL3 (IEC 61508)
Characteristic of the module
Decentralised safe I/O Slave module for the EtherCAT environment
Pulse outputs for cross-shorting detection of digital input signals
External contact monitoring of connected switchgear (EMU)
Comprehensive diagnostics functions integrated
Multifunction button (quit, start, reset) can be operated from the front side
Coded status display via front-side 7 segment display and status LEDs
