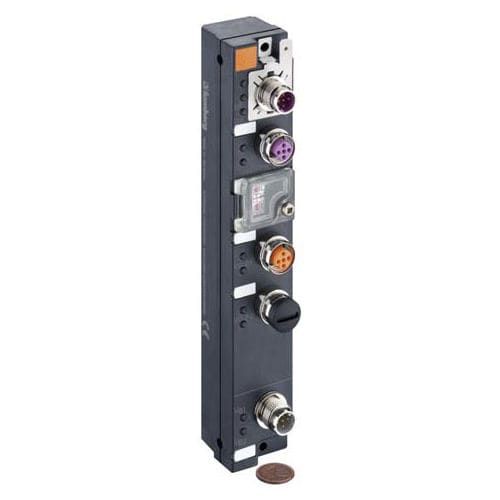

Bus coupler 0940 PSL 601

electronicI/OPROFIBUS-DP bus

Order No.:87058 Type:0940 PSL 601 Description:LioN-Link BusHead IP 67 bus coupler module, Profibus-Slave, for the connection between the higher level fieldbus and the fieldbus independent I/O modules, with M12 bus connection, rotary switches for addressing, M12 LioN-Link connection, M12 power supply connection. Standard: Bushead for LioN-Link standard modules. Availability:available Diagnostics Diagnostics according to Profibus specification, diagnosis for communication status, module breakdown and periphery faults in the Link system Note The application of these products in harsh environments should always be checked before use. Specifications subject to alteration. Color of housing black Product characteristics Vibration resistance, Oil resistance Classification Belden class LioN-Link BusHeads Belden brand Lumberg-Automation Mechanical data Weight 200 g Dimensions (W x H x D) 30 mm x 182.4 mm x 40.4 mm Environmental conditions Environmental temperature -10 ºC ... 60 ºC Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PBT Approvals Approvals UL Bus system Fieldbus system Profibus DP-V0 Bus Connection M12, B coded Number of contacts 5 Device Indentification 0A36 hex Transmission rate 12 Mbit/s Address range 1 dec. ... 125 dec. Rotary address switches 1 dec. ... 99 dec. Default address 99 dec.
