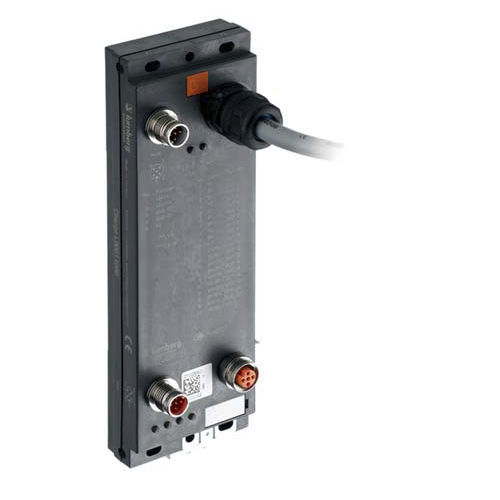

Digital I/O module 0942 UEM 780

16-I/OIP67universal

Order No.:105165 Type:0942 UEM 780 Description:16 DIO Universal - Multipole-Cable-Interface: LioN-Link I/O module with 16 digital I/O channels, channels can be used universally as inputs or outputs, multipole cable interface to connect valve terminals, control consoles, manual tool changing devices, IP20 terminal boxes Availability:available Diagnostics To facilitate troubleshooting software diagnostics for evaluation by the master is integrated as well as LED indicators for visual diagnostics. Periphery fault diagnostics for sensor short circuit, sensor low voltage detection, actuator short circuit. Note The application of these products in harsh environments should always be checked before use. Specifications subject to alteration. Color of housing black Product characteristics Vibration resistance, Oil resistance Classification Belden class LioN-Link Universal I/O Modules (DIO) with Digital Inputs and Outputs Belden brand Lumberg-Automation Mechanical data Weight 800 g Dimensions (W x H x D) 60 mm x 183 mm x 35 mm Environmental conditions Environmental temperature -10 ºC ... 60 ºC Environmental temperature (explanation) without condensation Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PBT Approvals Approvals UL System power supply System power supply US Nominal voltage (System power supply) 24 V DC Voltage range DC (System power supply) 19 V ... 30 V Power consumption (System power supply) 140 mA Reverse polarity protection (System power supply) Yes Operating Indication (System power supply) LED green Connection (System power supply) LioN-Link connection M12
