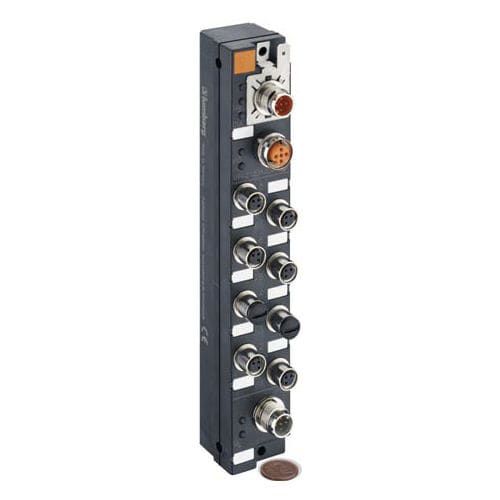

Digital I/O module 0942 UEM 650

for sensors8-channelIP67

Order No.:87040 Type:0942 UEM 650 Description:8 DIO Universal - M8 sockets: LioN-Link I/O module with 8 digital I/O channels, channels can be used universally as inputs or outputs, M8 sockets (8x), 3 poles, M12 actuator supply Availability:available Diagnostics To facilitate troubleshooting software diagnostics for evaluation by the master is integrated as well as LED indicators for visual diagnostics. Periphery fault diagnostics for sensor short circuit, sensor low voltage detection, actuator short circuit. Note The application of these products in harsh environments should always be checked before use. Specifications subject to alteration. Color of housing black Product characteristics Vibration resistance, Oil resistance Classification Belden class LioN-Link Universal I/O Modules (DIO) with Digital Inputs and Outputs Belden brand Lumberg-Automation Mechanical data Weight 175 g Dimensions (W x H x D) 30 mm x 182.4 mm x 40.4 mm Environmental conditions Environmental temperature -10 ºC ... 60 ºC Environmental temperature (explanation) without condensation Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PBT Approvals Approvals UL System power supply System power supply US Nominal voltage (System power supply) 24 V DC Voltage range DC (System power supply) 19 V ... 30 V Power consumption (System power supply) 70 mA Reverse polarity protection (System power supply) Yes Operating Indication (System power supply) LED green Connection (System power supply) LioN-Link connection M12
