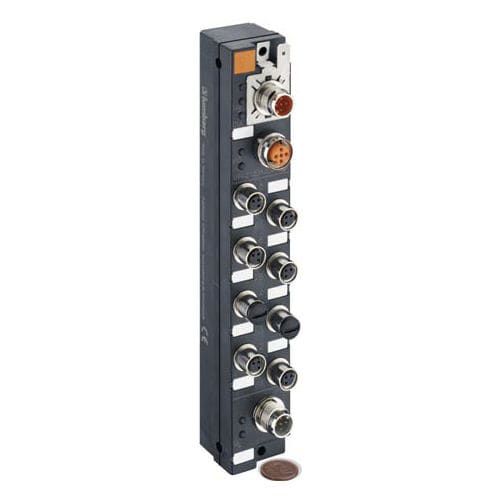

Digital I/O module 0942 UEM 700

16-I/OIP67universal

Order No.:93199 Type:0942 UEM 700 Description:16 DIO Universal - M12 sockets: LioN-Link I/O module with 16 digital I/O channels, channels can be used universally as inputs or outputs, M12 sockets (8x), 5 poles, 7/8" actuator supply Availability:available Diagnostics To facilitate troubleshooting software diagnostics for evaluation by the master is integrated as well as LED indicators for visual diagnostics. Periphery fault diagnostics for sensor short circuit, sensor low voltage detection, actuator short circuit. Note The application of these products in harsh environments should always be checked before use. Specifications subject to alteration. Color of housing black Product characteristics Vibration resistance, Oil resistance Classification Belden class LioN-Link Universal I/O Modules (DIO) with Digital Inputs and Outputs Belden brand Lumberg-Automation Mechanical data Weight 375 g Dimensions (W x H x D) 60 mm x 243 mm x 39.5 mm Environmental conditions Environmental temperature -10 ºC ... 60 ºC Environmental temperature (explanation) without condensation Degree of protection (IP), mounted IP67 Materials Housing material / Molded body PBT Approvals Approvals UL System power supply System power supply US Nominal voltage (System power supply) 24 V DC Voltage range DC (System power supply) 19 V ... 30 V Power consumption (System power supply) 100 mA Reverse polarity protection (System power supply) Yes Operating Indication (System power supply) LED green Connection (System power supply) LioN-Link connection M12
