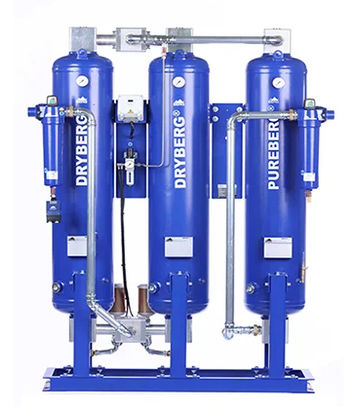

Desiccant compressed air dryer DRYBERG® AD150 CT

adsorptionheatless adsorptiontwo-stage

Overview
Cold-regenerating, oil-free adsorption dryer DRYBERG® AD150 CT. Achieve compressed air quality conforming to class 1.2.0 through a combination of advanced filtration and adsorption technologies, with an optional integrated activated carbon filter. Designed to remove moisture, oil and particles to prevent corrosion and equipment damage.

Key benefits

• Compressed air meeting class 1.2.0 purity requirements.
• Oil-free operation to avoid lubricant contamination.
• Optional activated carbon stage for removal of oil vapours and volatile organic compounds (VOCs).
• Service-friendly layout with accessible critical components.
• Energy-efficient design suitable for industrial environments.

Operation
Two-tower (twin-tower) adsorption dryer: adsorption occurs in the active tower while the second tower is regenerated at ambient pressure using a purge of already dried compressed air. Tower switching is performed without notable pressure drop at the dryer outlet. Regeneration of the desiccant is achieved by decompressing a partial flow of dried air, producing very dry air for desorption.

Technical notes
Performance values are based on 1 bar (abs.) and 20 °C, with an operating pressure of 7 bar and an inlet temperature of 35 °C. Dew point and capacity values may vary depending on operating pressure and inlet temperature.

Characteristics / technical specifications

• Product reference / SKU: 1010730150
• Model: DRYBERG® AD150 CT
• Capacity* [m3/m]: 2.5
• Capacity* [m3/h]: 150
• Connection: 1\" (inch)
• Dimensions (H x W x D x P) [mm]: 1305 x 853 x 1220 x 650
• Weight [kg]: 251 (table value); meta page indicates 260 kg
• Min. service pressure [bar]: 4
• Max. service pressure [bar]: 16
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content at 20 °C [mg/m³]: 0.003
• Pressure dew point (DTP) [°C]: -40
• Note: *based on 1 bar (abs.) and 20 °C at 7 bar operating pressure and 35 °C inlet temperature
