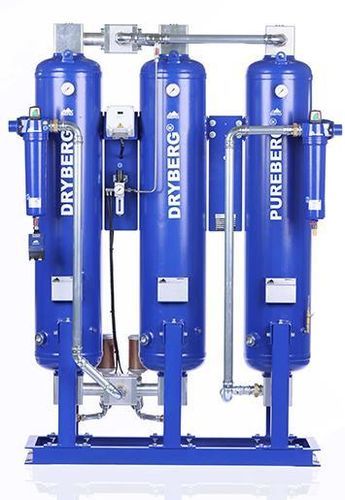

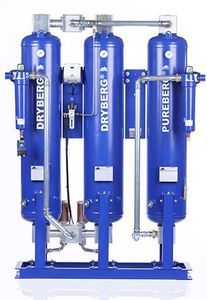

Adsorption compressed air dryer DRYBERG® AD340 CT

heatless adsorption

Product information
Heatless, oil-free adsorption dryer DRYBERG® AD340 CT designed for continuous drying of compressed air with pressure dew point down to -40 °C.

Applications

• Industrial applications requiring very dry, oil-free compressed air (automotive, textile, healthcare).
• Pneumatic tools, spray painting, laboratories and sensitive process lines.
• Environments where removal of oil traces and low dew point are critical.

Technical data of adsorption dryer DRYBERG® AD340 CT
Capacity* [m3/min]: 5.6 (340 m3/h)
Connection [inch]: 1 1/2"
Dimensions (AxBxCxD) [mm]: 1531 x 1008 x 1653 x 716
Weight [kg]: 552
Min. operating pressure [bar g]: 4
Max. operating pressure [bar g]: 16
Power supply: 230 V / 50-60 Hz AC
Residual oil content at 20 °C [mg/m³]: 0.003
Pressure dew point (DTP) [°C]: -40

Operating pressure (performance table)
Operating pressure (bar g): 4 5 6 7 8 9 10 11 12 13 14 15 16
Inlet Temp. (°C) = 35 : 0.6 0.7 0.8 1.0 1.1 1.2 1.3 1.5 1.5 1.6 1.6 1.7 1.7
Inlet Temp. (°C) = 40 : 0.5 0.6 0.7 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.7
Inlet Temp. (°C) = 45 : 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.4

Notes
*Calculated at 1 bar (abs.) and 20 °C, based on 7 bar g operating pressure and 35 °C compressed air inlet temperature (saturated condition).

Documents
User manual DRYBERG AD150 - 1200 CT and controller manual EVERMATIC 20 available in PDF.

Characteristics / technical specifications

• Model: DRYBERG® AD340 CT
• Capacity*: 5.6 m3/min (340 m3/h)
• Pressure dew point (DTP): -40 °C
• Operating pressure: 4 – 16 bar g
• Connection: 1 1/2"
• Dimensions (AxBxCxD): 1531 x 1008 x 1653 x 716 mm
• Weight: 552 kg
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content at 20 °C: 0.003 mg/m³
• Regeneration type: heatless (cold regeneration)
• Optional: activated carbon tower for oil/odor removal
• Note: values marked * based on 1 bar (abs.) and 20 °C at 7 bar operating pressure and 35 °C inlet temperature
