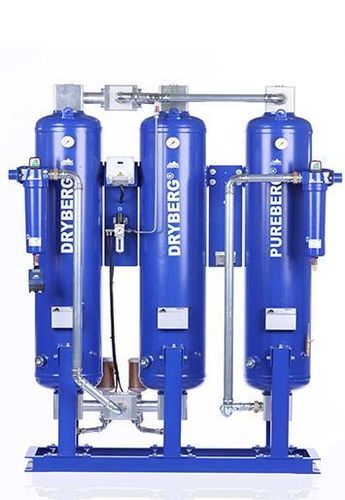

Heatless desiccant compressed air dryer DRYBERG® AD180 CT

adsorptionheatless adsorption

Product information
The DRYBERG® AD180 CT is a heatless, oil-free adsorption dryer designed to deliver dry, oil-free compressed air for industrial applications.

Overview
Cold-regenerating adsorption combined with an integrated activated carbon stage removes moisture and oil vapor / VOCs from compressed air. The design emphasizes continuous, reliable operation, straightforward maintenance and clear monitoring for industrial installations in food & beverage, pharmaceutical and electronics manufacturing.

Key features

• Heatless, oil-free adsorption drying technology
• Integrated activated carbon tower for removal of oil vapor and VOCs
• Included pressure gauges and oil test indicator
• User-friendly controls and status indicators for monitoring
• Robust construction for industrial environments

Technical data (excerpt)
Capacity* [m3/m] : 3
Capacity* [m3/h] : 180
Connection [inch] : 1"
Dimensions (AxBxCxD) [mm] : 1420x853x1220x650
Weight [kg] : 284
Min. pressure [bar g] : 4
Max. pressure [bar g] : 16
Power supply : 230 V / 50-60 Hz AC
Residual oil content at 20 °C [mg/m³] : 0,003
Pressure dew point [°C] : -40

Operating pressure / Performance (excerpt)
Operating pressure (bar g) : 4 5 6 7 8 9 10 11 12 13 14 15 16
Inlet Temp. (°C) 35 : 0,6 0,7 0,8 1 1,1 1,2 1,3 1,5 1,5 1,6 1,6 1,7 1,7
Inlet Temp. (°C) 40 : 0,5 0,6 0,7 0,8 0,9 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,7
Inlet Temp. (°C) 45 : 0,4 0,5 0,5 0,6 0,7 0,8 0,9 1 1 1,1 1,2 1,3 1,4
>45 : 0 0 0 0 0 0 0 0 0 0 0 0 0

Applications

• Food and beverage processing
• Pharmaceutical production
• Electronics and semiconductor manufacturing
• Any industrial system requiring dry, oil-free compressed air

Notes
Values marked with * are calculated at 1 bar (abs.) and 20 °C at 7 bar g operating pressure and 35 °C inlet temperature (saturated condition). Delivery status: Available. Delivery time: Approximately 3–4 weeks.

Specifications

• Model: DRYBERG® AD180 CT
• Brand: BERG Kompressoren GmbH
• Product number / SKU: 1010730180
• Net price (excl. tax): 14,410.00 EUR
• Nominal capacity: 180 m3/h (3 m3/m)
• Connection: 1"
• Dimensions (AxBxCxD): 1420 x 853 x 1220 x 650 mm
• Weight: 284 kg
• Operating pressure range: 4 – 16 bar g
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content (at 20 °C): 0,003 mg/m³
• Pressure dew point: -40 °C
