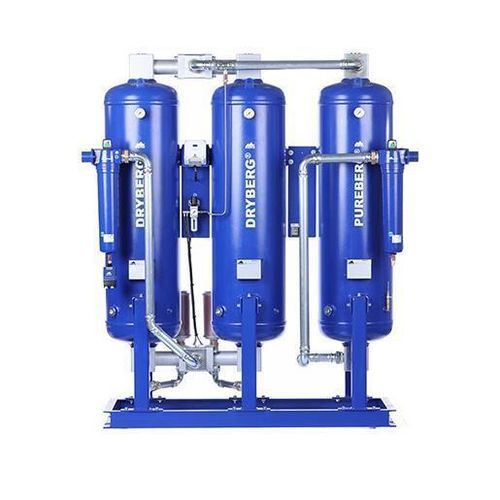

Adsorption compressed air dryer DRYBERG® AD1200 CT

heatless adsorptiontwo-stagehigh-capacity

Overview
Cold-regenerating oil-free adsorption dryer DRYBERG® AD1200 CT

Control & monitoring
Equipped with advanced control systems, the DRYBERG® AD1200 CT provides real-time monitoring and diagnostic functions. These features track performance parameters such as pressure level and moisture content to ensure operation within optimal ranges. Proactive detection helps identify potential issues before escalation, minimizing downtime and improving overall system reliability.

Operation and design
Cold-regenerating adsorption dryer, oil-free operation. Twin-tower design: adsorption under pressure in the active tower while the second tower is regenerated at ambient pressure using a portion of already dried compressed air. Versions available with an integrated activated carbon tower for additional removal of volatile organic compounds and oil traces.

Ease of use and maintenance
Designed for user-friendly operation: intuitive controls and clear indicators for monitoring. Easy access to critical components simplifies routine maintenance tasks and reduces downtime.

Product data summary
capacity [m3/m] : 20
capacity [m3/h] : 1200
connector [inch] : 2"
Dimensions (AxBxCxP) [mm] : 2298x1173x2053x900
weight [kg] : 1366
min. service pressure [bar ü] : 4
max. service pressure [bar g] : 16
power supply : 230 V / 50-60 Hz AC
residual oil content at 20 °C [mg/m³] : 0.003
pressure dew point (DTP) [°C] : -40

Operating pressure (bar g) / Temperature
Operating pressure (bar g) : 4 5 6 7 8 9 10 11 12 13 14 15 16
35 °C : 0.6 0.7 0.8 1 1.1 1.2 1.3 1.5 1.5 1.6 1.6 1.7 1.7
40 °C : 0.5 0.6 0.7 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.7
45 °C : 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.4
>45 °C : 0 0 0 0 0 0 0 0 0 0 0 0 0

Additional information
Version available with integrated activated carbon tower (for VOCs and oil trace removal). DRYBERG® AD-CT series designed for industrial applications requiring high-quality compressed air (low dew points, oil-free operation). Suitable for industrial environments where energy efficiency and durability are priorities.

Technical characteristics / specifications

• Model: DRYBERG® AD1200 CT
• Rated capacity: 1200 m3/h (20 m3/m)
• Connection: 2"
• Dimensions (LxWxH approx.): 2298 x 1173 x 2053 x 900 mm
• Weight: 1366 kg
• Service pressure: 4 to 16 bar (g)
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content (at 20 °C): 0.003 mg/m³
• Pressure dew point (DTP): -40 °C
• Function: cold-regenerating adsorption dryer, oil-free operation, activated carbon tower option
• Performance data (see pressure/temperature table above)
