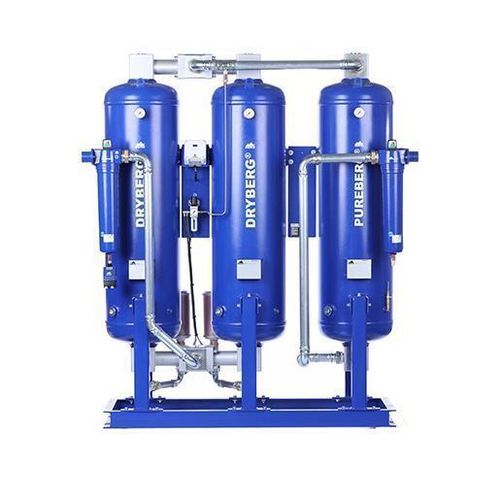

Adsorption compressed air dryer DRYBERG® AD2000 CT

desiccantheatless desiccantheatless adsorption

Product information
Heatless oil-free adsorption dryer DRYBERG® AD2000 CT designed for continuous industrial compressed air drying with optional integrated activated carbon (CT) for enhanced removal of oil vapors and VOCs.

Advanced Control Systems
Equipped with state-of-the-art control systems providing real-time monitoring and diagnostics. Operators can track pressure, moisture content and system status to ensure operation within optimal parameters, enabling early detection of anomalies and reducing downtime.

Functional description and benefits

• Heatless cold-regenerative adsorption principle delivering oil-free compressed air and stable pressure dew points.
• Real-time monitoring and diagnostics support preventive maintenance and performance tracking.
• Maintenance-friendly design with easy access to critical components and intuitive controls.
• Optional integrated activated carbon tower (CT) for additional removal of oil vapors and volatile organic compounds.
• Suitable for industrial applications requiring high-purity compressed air.

Technical data (excerpt)
Capacity* [m3/m] | 34.1
Capacity* [m3/h] | 2050
Connection [inch] | DN80
Dimensions (AxBxC) [mm] | 2530x924x2448
Weight [kg] | 1490
Min. pressure [bar g] | 4
Max. pressure [bar g] | 16
Power supply | 230 V / 50-60 Hz AC
Residual oil content at 20 °C [mg/m³] | 0.003
Pressure dew point [°C] | -40
*Calculated at 1 bar (abs.) and 20°C at 7 bar g operating pressure and 35 °C compressed air inlet temperature (saturated condition)

Operating pressure (bar g) - performance overview
Operating pressure header: 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16
Inlet Temp. 35 °C: 0.6 | 0.7 | 0.8 | 1 | 1.1 | 1.2 | 1.3 | 1.5 | 1.5 | 1.6 | 1.6 | 1.7 | 1.7
Inlet Temp. 40 °C: 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 | 1.7 | 1.7
Inlet Temp. 45 °C: 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1 | 1 | 1.1 | 1.2 | 1.3 | 1.4
>45 °C: 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0

Notes

• Designed for heatless, oil-free drying with optional activated carbon tower to reduce oil vapors and VOCs.
• Series control and monitoring simplify maintenance and enable proactive diagnostics.

Technical characteristics / specifications

• Model: DRYBERG® AD2000 CT
• Manufacturer: BERG Kompressoren GmbH
• Capacity: 34.1 m³/m (equiv. 2050 m³/h) *
• Connection: DN80
• Dimensions (AxBxC): 2530 x 924 x 2448 mm
• Weight: 1490 kg (technical table) — meta weight on page: 1390 kg
• Operating pressure: min. 4 bar g / max. 16 bar g
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content at 20 °C: 0.003 mg/m³
• Pressure dew point: -40 °C
• Footnote: *Calculated at 1 bar (abs.) and 20 °C at 7 bar g operating pressure and 35 °C compressed air inlet temperature (saturated condition)
