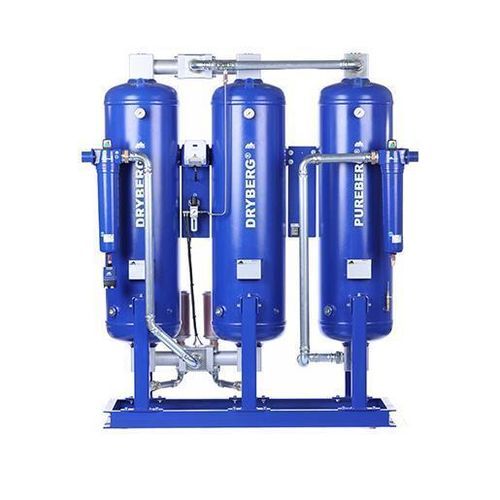

Adsorption compressed air dryer DRYBERG® AD820 CT

desiccantheatless adsorptionblower purge

Overview
Cold-regenerated, oil-free adsorption dryer DRYBERG® AD820 CT designed for continuous removal of water vapor from compressed air to lower the pressure dew point.

Highlights

• Cold-regenerated, oil-free adsorption drying process
• Durable construction for industrial environments
• Reduced maintenance through design adapted to dust and humidity
• User-friendly controls and easy access to service components

Detailed description
The DRYBERG® AD820 CT uses two alternating adsorbent towers (twin-tower system): one tower adsorbs moisture at pressure while the other regenerates. A small portion of dried compressed air is used for regeneration, ensuring effective drying performance and continuous operation without pressure drop at the outlet.

Performance data
capacity* [m3/min] : 13.6
capacity* [m3/h] : 820
connector [inch] : 2"
Dimensions (H x W x D x P) [mm] : 1898 x 1173 x 2053 x 900
weight [kg] : 1123
min. operating pressure [bar g] : 4
max. operating pressure [bar g] : 16
power supply : 230 V / 50-60 Hz AC
residual oil content at 20 °C [mg/m³] : 0.003
pressure dew point (DTP) [°C] : -40

Performance factors by operating pressure (bar g) and temperature (°C)
Operating pressure (bar g): 4 5 6 7 8 9 10 11 12 13 14 15 16
Temperature 35 °C : 0.6 0.7 0.8 1 1.1 1.2 1.3 1.5 1.5 1.6 1.6 1.7 1.7
Temperature 40 °C : 0.5 0.6 0.7 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.7
Temperature 45 °C : 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.4
Temperature >45 °C : 0 0 0 0 0 0 0 0 0 0 0 0 0

Notes
*based on 1 bar (abs.) and 20 °C at 7 bar — operating pressure and inlet temperature 35 °C

Technical specifications

• Model: DRYBERG® AD820 CT
• Manufacturer: BERG Kompressoren GmbH
• Product number (SKU): 1010730820
• Nominal capacity: 13.6 m3/min (equiv. 820 m3/h)
• Connector: 2"
• Dimensions (H x W x D x P): 1898 x 1173 x 2053 x 900 mm
• Weight: 1123 kg
• Operating pressure range: 4 – 16 bar g
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content (20 °C): 0.003 mg/m³
• Pressure dew point (DTP): -40 °C
• Regeneration type: cold-regenerated
