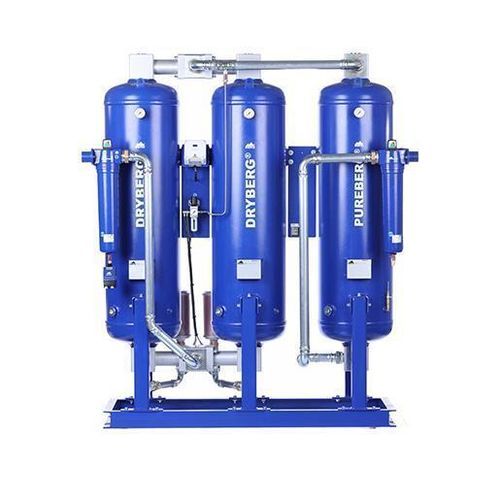

Adsorption compressed air dryer DRYBERG® AD1000 CT

heatless adsorptiontwo-stagehigh-capacity

Product information
Heatless, oil-free twin-tower adsorption dryer DRYBERG® AD1000 CT designed for industrial compressed air systems requiring a low pressure dew point and ultra-low residual oil content.

Overview
Compact and space-saving design that enables installation in constrained layouts while maintaining high treatment capacity. The DRYBERG® AD1000 CT handles large air volumes efficiently, making it suitable for facilities that need reliable dry, oil-free compressed air without extensive footprint.

Technical data
Capacity* [m3/m]: 16.6
Capacity* [m3/h]: 1000
Connection [inch]: 2"
Dimensions (AxBxCxD) [mm]: 2198 x 1173 x 2053 x 900
Weight [kg]: 1299
Min. pressure [bar g]: 4
Max. pressure [bar g]: 16
Power supply: 230 V / 50-60 Hz AC
Residual oil content at 20 °C [mg/m³]: 0.003
Pressure dew point [°C]: -40

Operating pressure (bar g) vs Inlet Temp (°C)
Operating pressure (bar g): 4 5 6 7 8 9 10 11 12 13 14 15 16
Inlet Temp. (°C) 35: 0.6 0.7 0.8 1.0 1.1 1.2 1.3 1.5 1.5 1.6 1.6 1.7 1.7
Inlet Temp. (°C) 40: 0.5 0.6 0.7 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.7
Inlet Temp. (°C) 45: 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.4
Inlet Temp. (°C) >45: 0 0 0 0 0 0 0 0 0 0 0 0 0

Features & benefits

• Heatless, oil-free adsorption drying for high-purity compressed air suitable for sensitive industrial processes.
• Optional integrated activated carbon tower for improved removal of oil vapours and VOCs.
• Compact footprint enabling flexible installation in constrained plant layouts.
• Intuitive controls and clear indicators for simplified operation, monitoring and maintenance.
• Industrial-grade construction and durable components for continuous operation.
• Optimized airflow and energy use to reduce operational costs.
• Delivers very low residual oil content and a pressure dew point of -40 °C for demanding applications.

Included / Notable equipment (as shown)

• Pressure gauges
• Activated carbon tower (integrated configuration)
• Oil test indicator

Notes
Capacity and performance values marked with * are calculated at 1 bar (abs.) and 20 °C, at 7 bar g operating pressure and 35 °C compressed air inlet temperature (saturated condition).

Technical specifications

• Model: DRYBERG® AD1000 CT
• Rated capacity: 1000 m3/h (16.6 m3/m) *
• Connection size: 2"
• Dimensions (AxBxCxD): 2198 x 1173 x 2053 x 900 mm
• Weight: 1299 kg
• Operating pressure range: 4 – 16 bar g
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content (at 20 °C): 0.003 mg/m³
• Design pressure dew point: -40 °C
• Drier type: Twin-tower heatless adsorption dryer with optional activated carbon filtration
• Typical applications: Industrial compressed air systems requiring oil-free, low-dew-point air
