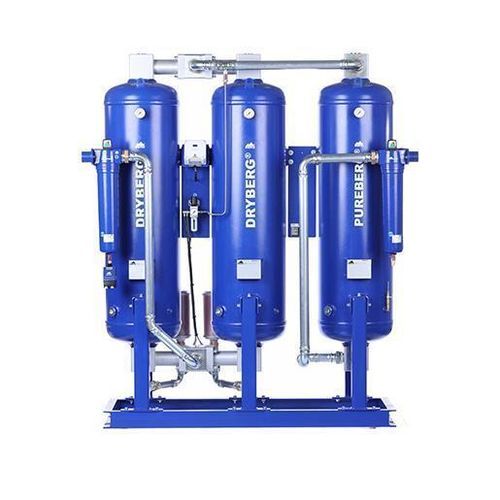

Heatless desiccant compressed air dryer DRYBERG® AD600 CT

adsorptionheatless adsorptionhigh-capacity

Product overview
Heatless, oil-free adsorption dryer DRYBERG® AD600 CT designed for continuous industrial compressed air drying to a pressure dew point of -40 °C.

User-friendly operation
The DRYBERG® AD600 CT features intuitive controls and clear indicators for system monitoring. Routine maintenance is simplified by easy access to key components, allowing technicians to perform inspections and replacements with minimal downtime, supporting stable production processes.

Technical data
Capacity* [m3/m] : 10
Capacity* [m3/h] : 600
Connection [inch] : 1 1/2"
Dimensions (AxBxCxD) [mm] : 2090x1008x1653x716
Weight [kg] : 779
Min. pressure [bar g] : 4
Max. pressure [bar g] : 16
Power supply : 230 V / 50-60 Hz AC
Residual oil content at 20 °C [mg/m³] : 0,003
Pressure dew point [°C] : -40
*calculated at 1 bar (abs.) and 20°C at 7 bar g operating pressure and 35 °C compressed air inlet temperature (saturated condition)

Operating pressure (bar g) — Inlet Temp. vs. Values
Operating pressure (bar g): 4 5 6 7 8 9 10 11 12 13 14 15 16
35 °C: 0,6 0,7 0,8 1,0 1,1 1,2 1,3 1,5 1,5 1,6 1,6 1,7 1,7
40 °C: 0,5 0,6 0,7 0,8 0,9 1,1 1,2 1,3 1,4 1,5 1,6 1,7 1,7
45 °C: 0,4 0,5 0,5 0,6 0,7 0,8 0,9 1,0 1,0 1,1 1,2 1,3 1,4
>45 °C: 0 0 0 0 0 0 0 0 0 0 0 0 0

Features / Technical specifications

• Model: DRYBERG® AD600 CT
• Capacity: 600 m3/h (equivalent 10 m3/m)
• Connection: 1 1/2"
• Dimensions (AxBxCxD): 2090 x 1008 x 1653 x 716 mm
• Weight: 779 kg
• Operating pressure range: 4 — 16 bar g
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content at 20 °C: 0,003 mg/m³
• Pressure dew point: -40 °C
• Operation: heatless, oil-free adsorption dryer with integrated activated carbon tower
