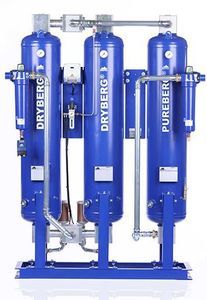

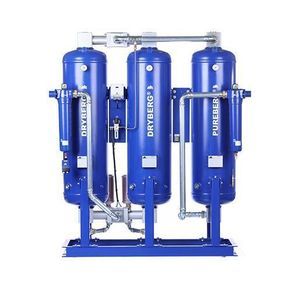

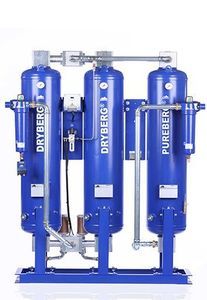

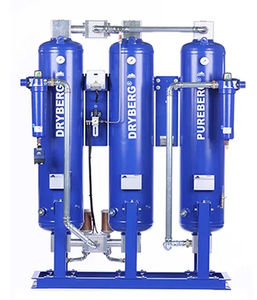

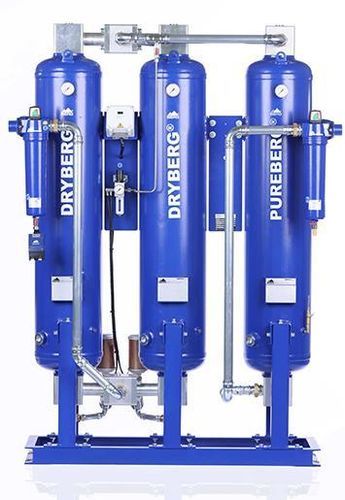

Adsorption compressed air dryer DRYBERG® AD210 CT

Description
Cold-regenerating, oil-free adsorption dryer DRYBERG® AD210 CT. Includes pressure gauge, activated carbon tower and oil-test indicator. Integrated activated carbon technology improves adsorption of moisture and volatile organic compounds (VOCs), enhancing compressed air quality and protecting downstream equipment. Maintenance-friendly design and intuitive controls simplify inspection and service.

Activated carbon technology
The use of activated carbon in the DRYBERG® AD210 CT increases capacity to adsorb moisture and VOCs. Activated carbon, with its large surface area and porous structure, effectively traps contaminants, improving compressed air quality and extending the life of downstream systems. This technology also reduces maintenance costs and downtime.

Technical data (excerpt)
capacity* [m3/m]: 3.5
capacity* [m3/h]: 210
connection [inch]: 1"
Dimensions (H×W×D×P) [mm]: 1544x853x1220x650
weight [kg]: 305
min. operating pressure [bar g]: 4
max. operating pressure [bar g]: 16
power supply: 230 V / 50-60 Hz AC
residual oil content at 20 °C [mg/m³]: 0.003
pressure dew point (DTP) [°C]: -40

Operating pressure (bar g) — Values by temperature
Operating pressure (bar g): 4 5 6 7 8 9 10 11 12 13 14 15 16
Temperature 35 °C: 0.6 0.7 0.8 1.0 1.1 1.2 1.3 1.5 1.5 1.6 1.6 1.7 1.7
Temperature 40 °C: 0.5 0.6 0.7 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.7
Temperature 45 °C: 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.4
>45 °C: 0 0 0 0 0 0 0 0 0 0 0 0 0

Notes
Values marked with an asterisk (*) are based on 1 bar (abs.) and 20 °C at 7 bar — operating pressure and inlet temperature of 35 °C.

Features / technical specifications

• Model: DRYBERG® AD210 CT
• Manufacturer: BERG Kompressoren GmbH
• Nominal capacity: 210 m3/h (3.5 m3/m)
• Connection: 1"
• Dimensions (H×W×D×P): 1544 x 853 x 1220 x 650 mm
• Weight: 305 kg
• Operating pressure range: 4 – 16 bar g
• Power supply: 230 V / 50-60 Hz AC
• Residual oil content (20 °C): 0.003 mg/m³
• Pressure dew point (DTP): -40 °C
• Technology: cold-regenerating oil-free adsorption with activated carbon tower(s) for VOC suppression and compressed air quality improvement
• Product ref (SKU): 1010730210
