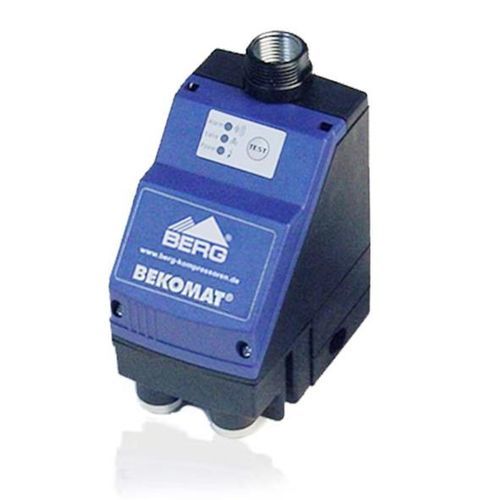

Condensate drain BEKOMAT® 20

automaticelectronicfor air filtration

Description
The BEKOMAT® 20 is a high-performance condensate drain designed for water separators and compressed-air filters. Suitable for both oil-lubricated and oil-free compressors. The control panel is accessible from the top and the front. The unit features a plastic housing with an integrated aluminium condensate reservoir. A BEKOMAT® 20 FM version with integrated filter management provides an economical option for monitoring the service filter element.

Key benefits & uses

• Efficient condensate removal: reliably evacuates condensate from compressed-air systems to protect downstream equipment.
• Energy saving: demand-operated function activates only when draining is required.
• Easy maintenance: service-friendly design with top/front access to the control panel and unit components.
• Reliable operation: designed by BEKO for stable performance in industrial environments.

Applications

• Industrial compressed-air systems (manufacturing plants, automotive industry, food processing, pharmaceuticals, etc.).
• Integration with air compressors and dryer/filter stations to ensure dry, condensate-free supply air.
• Protection of pneumatic tools and downstream equipment against moisture for sustained performance and longevity.

Technical specifications

• Model: BEKOMAT® 20
• Maximum compressor capacity: 4 m³/min
• Maximum dryer capacity: 8 m³/min
• Maximum filter capacity: 40 m³/min
• Example voltage (table): 230 VAC / 50-60 Hz
• Operating pressure: 0.8 - 16 bar
• Operating temperature: +1 to +60 °C
• Connection threads: 1 x G 1/2, 1 x G 3/4
• Condensate drain outlet: DN 8-10 or G 1/4i
• Dimensions W x D x H: 140 x 72 x 140 mm
• Weight (technical table): approx. 0.7 kg
• Weight (page meta data): 1.1 kg
• Available voltage variants: 24 VAC ±10% (50-60 Hz); 24 VDC ±10%; 115 VAC ±10% (50-60 Hz); 230 VAC ±10% (50-60 Hz)
• Variant note: BEKOMAT® 20 FM version with integrated filter management (filter status display/control) available.
