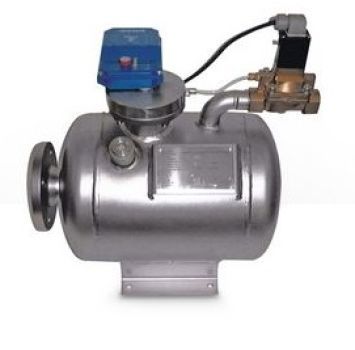

Condensate drain BEKOMAT® 8

automaticelectroniczero-loss

Product information
The BEKOMAT® 8 condensate drain features a cast stainless-steel housing designed for aggressive atmospheres and for the discharge of condensates from special gas compression. It is intended for large compressors and gas-compression systems used in refineries, petrochemical plants and petroleum installations. The unit is an electronically level-controlled condensate drain developed for heavy-duty industrial requirements.

Applications
For large compressor installations, particularly in refineries, petrochemical plants, chemical industry and petroleum plants.

Features

• No loss of compressed air during draining
• Low operating costs
• High operational reliability
• Durable and resistant to dirt
• Large valve diameters to prevent emulsion formation
• No delicate mechanical components
• Easy to install

Maintenance / Automation

• Maintenance-free design
• Versatile connection options
• Fully automated operation and monitoring
• Integration with modern system monitoring
• Automatic start of self-cleaning based on dirt formation

Technical data
Model: BEKOMAT® 8
Compressor capacity [m³/min]: 9.360 - 14.400
Voltage: 230 VAC / 50...60 Hz (other voltage options available)
Operating pressure [bar]: 0.5 - 10
Temperature range [°C]: +1 to +60
Condensate connection: Flange C50 x 60.3 DIN1092-1
Dimensions (B x H) [mm]: 484 x 485
Intended condensate types: oil-contaminated condensate; oil-free, often aggressive condensate; aggressive condensate from compressed gas compressors

Specifications / technical details

• Manufacturer: BEKO Technologies GmbH
• Model: BEKOMAT® 8
• Product number / SKU: 2000177.4
• Weight: 29 kg
• Displayed net price: EUR 9,746.00
• Voltage options: 24 VAC ±10% / 24 VDC ±10% / 115 VAC ±10% / 230 VAC ±10% (230 VAC preselected)
• Operating pressure: 0.5 - 10 bar
• Operating temperature: +1 to +60 °C
• Condensate connection: Flange C50 x 60.3 (DIN1092-1)
• Dimensions (B x H): 484 x 485 mm
