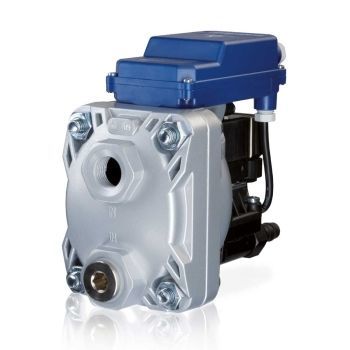

Condensate drain BEKOMAT® 13

automaticelectroniczero-loss

Product overview
BEKO condensate drain BEKOMAT® 13, 13 CO, 13 CO PN50 adapts discharge frequency to condensate volume and evacuates condensate without significant compressed air loss. A capacitive sensor monitors the membrane level; when the preset level is reached the control unit triggers the solenoid valve so the condensate is vented and discharged to a downstream oil‑water separator.

Design and versions
Standard units feature a corrosion‑resistant aluminium housing with silver coating. CO variants have a glass‑bead blasted aluminium housing with a hard protective coating for oil‑free or aggressive condensates. Multiple pressure (PN) and electrical supply options are available.

Measures / Safety advice

• Do not exceed the maximum operating pressure (see type plate).
• Perform service work only when the system is depressurized.
• Use only pressure‑resistant installation materials.
• Fix the feed pipe firmly; use a short, fixed pressure hose to the pressure‑resistant discharge pipe.
• Ensure people and equipment are not exposed to condensate or escaping compressed air during discharge.

Operation and benefits
The BEKOMAT® 13 uses capacitive sensing to eliminate mechanical floats and reduce maintenance. Rapid solenoid switching prevents measurable loss of compressed air, improving energy efficiency and reducing operating costs while ensuring reliable condensate removal.

Technical data (summary)
Models: BEKOMAT® 13 | 13 CO | 13 CO PN50
Max. compressor capacity: 35 m3/min
Max. refrigeration dryer capacity: 70 m3/min
Max. filter capacity: 350 m3/min
Operating pressure: 0.8 … 16 bar(g) (standard); PN variants up to 25 / 40 / 50 bar(g)
Housing: Aluminium (standard); Aluminium hard‑coated (CO)
Ambient temperature: +1 °C … +60 °C
Weight (empty): ≈ 2.0 kg (varies by variant)
Condensate inlet: 2 x G½ (inside) [optional: NPT thread]
Condensate discharge: 1 x G½ (outside) or 1 x G⅜ (inside) depending on variant; hose connector Ø 13 mm (inside)
Operating voltage: 230 / 200 / 115 / 100 / 24 VAC ±10%, 50–60 Hz; 24 VDC ±10%
Power consumption: P < 8.0 VA (W)
Protection class: IP65
Recommended wire cross‑section: 3 x 0.75 … 1.5 mm2 (AWG 16 … 18)
Recommended fuse: 1 A slow (AC and DC as specified)
Alarm contact load: max. AC 250 V, DC 30 V / 1 A; min. DC 5 V / 10 mA
Condensate type: oil‑contaminated; CO models for oil‑free or aggressive condensates

Characteristics / technical specifications

• Model name: BEKOMAT® 13 (variants: 13 CO, 13 CO PN50).
• Control principle: capacitive sensor and diaphragm with pilot/solenoid valve.
• No measurable compressed air loss during discharge.
• Suitable for integration with oil‑water separators (Owamat).
• Multiple voltage and pressure options for different installations.
• Protection rating IP65; low power consumption < 8 VA.
