Electricity service unit BEKOMAT® 14

Product name

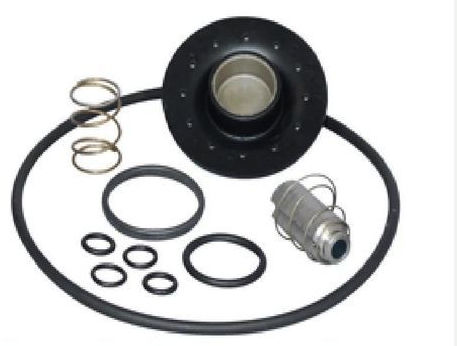

Service unit BEKOMAT® 14, 14 CO, 14 CO PN 25

Summary
Service / maintenance spare part (service unit) for BEKOMAT® 14 series condensate drains. Supplied as a replaceable service unit to maintain or repair BEKOMAT® 14, 14 CO and 14 CO PN 25 devices.

Details information
Service unit BEKOMAT® 14, 14 CO, 14 CO PN 25. Replaceable components and compatible part numbers for different sub-models and sensor supply voltages are listed below.

Parts and prices (For BEKOMAT® 14 | 14 | Price (€) | 14 CO | Price (€) | 14 CO PN 25 | Price (€))
Wearing part set | 2000731 (XEKA14101) | 89 | 2000731 (XEKA14101) | 89 | 2002556 (XEKA14301) | 111
Diaphragms 3 pcs | 4002451 (XEKA00020) | 155 | 4002451 (XEKA00020) | 155 | 2000439 (XEKA00019) | 168
Diaphragm seat | 2001118 (XEKA13109) | 45 | 2001118 (XEKA13109) | 45 | - | -
Valve | 4027849 | 138 | 4027850 | 156 | 4027851 | 575
Valve attachment components | 2000071 (XEKA13102) | 54 | 2000072 (XEKA13202) | 58 | 2000371 (XEKA13302) | 480
Sealing kit | 2000080 (XEKA14104) | 32 | 2000080 (XEKA14104) | 32 | 4000923 | 35
Housing | 2000082 (XEKA14105) | 253 | 2000083 (XEKA14205) | 468 | 2000083 (XEKA14205) | 468
Housing cover | 2000084 (XEKA14106) | 153 | 2000085 (XEKA14206) | 335 | 2000085 (XEKA14206) | 335
Top cover | 2000066 (XEKA12005) | 86 | 2000066 (XEKA12005) | 86 | 2000066 (XEKA12005) | 86
Sensor control board | 2000086 (XEKA14001) (4047968) | 228 | 2000086 (XEKA14001) (4047968) | 228 | 2000086 (XEKA14001) (4047968) | 228
Sensor PCB 230 VAC | 2000063 (XEKA12002) | 108 | 2000063 (XEKA12002) | 108 | 2000063 (XEKA12002) | 108
Sensor PCB 200 VAC | 2000349 (XEKA12008) | 108 | 2000349 (XEKA12008) | 108 | 2000349 (XEKA12008) | 108
Sensor PCB 115 VAC | 2000064 (XEKA12003) | 108 | 2000064 (XEKA12003) | 108 | 2000064 (XEKA12003) | 108
Sensor PCB 100 VAC | 2000611 (XEKA12010) | 108 | 2000611 (XEKA12010) | 108 | 2000611 (XEKA12010) | 108
Sensor PCB 24 VAC | 2000065 (XEKA12004) | 108 | 2000065 (XEKA12004) | 108 | 2000065 (XEKA12004) | 108
Sensor PCB 24 VDC | 2000756 (XEKA12012) | 108 | 2000756 (XEKA12012) | 108 | 2000756 (XEKA12012) | 108

Included / relevant product notes
- This item is a service unit (maintenance spare part) for BEKOMAT® 14 family condensate drains. It contains wear parts, sealing kits and other replaceable components as listed in the parts section above.
- Compatible spare part numbers and sensor supply variants (230 VAC, 200 VAC, 115 VAC, 100 VAC, 24 VAC, 24 VDC) are provided per model variant.
- Price shown on page: net and gross prices available in the buy box (example: Net €32.00; Gross €38.08).

Technical characteristics / specifications

• Model / Denomination: BEKOMAT® 14 (service unit for 14, 14 CO, 14 CO PN 25)
• Product number (SKU): 2000080
• Weight (itemprop): 0.6 kg
• Net price shown on page: €32.00
• Gross price shown on page: €38.08
• Contains sealing kit reference 2000080 (XEKA14104) when applicable
• Multiple compatible sensor PCB variants listed (230 VAC, 200 VAC, 115 VAC, 100 VAC, 24 VAC, 24 VDC)
• Spare part references for wearing part sets, diaphragms, valves and housing components included above
