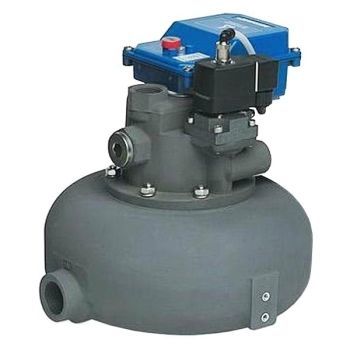

Condensate drain BEKOMAT® 6 CO EX

automaticelectronicfor compressors

Product information
BEKO condensate drain BEKOMAT® 6 CO EX for drainage of condensate without loss of compressed air.

Summary
Electronic level-controlled evacuation permits condensate discharge without releasing compressed air, avoiding energy loss. Float drains with leaks and time-controlled solenoid valves can generate significant compressed-air losses; the BEKOMAT® 6 CO EX evacuates condensate only when the level requires it, reducing costs and emissions.

Function of the BEKOMAT® 6 CO EX
Empty state:
Condensate flows into the tank while the valve remains closed.

Full state:
When the maximum level is reached the valve opens and condensate is discharged without loss of compressed air.

Technical data (table)
BEKOMAT®: BEKOMAT® 6 CO EX
compressor capacity [m³/min]: 1000
voltage: 12 VDC
operating pressure [bar]: 0.8 - 16
temperature [°C]: +1 to +60
connection thread: 2 x G3/4 | 1 x G1
dimensions L x D x H [mm]: 260 x 280 x 295
weight [kg]: approx. 5.0
insert: oily / oil-free condensate, often aggressive

Additional information
Service kits and spare parts are available to ensure reliable operation and efficient maintenance. The system uses a capacitive level sensor and an electronic control unit to trigger discharge only at the preset level, minimising compressed-air losses.

Characteristics / technical specifications

• Model: BEKOMAT® 6 CO EX
• Supply voltage: 12 VDC
• Operating pressure range: 0.8 – 16 bar
• Operating temperature range: +1 to +60 °C
• Connections: 2 x G3/4 and 1 x G1
• Dimensions (L x D x H): 260 x 280 x 295 mm
• Weight: approx. 5.0 kg
• Reference compressor capacity: 1000 m³/min
• Suitable for oily and oil-free condensate; CO specification for CO2 systems / aggressive condensates
• Operation: electronic level control with capacitive sensor for discharge without compressed-air loss
• Available: service units and spare parts for maintenance
