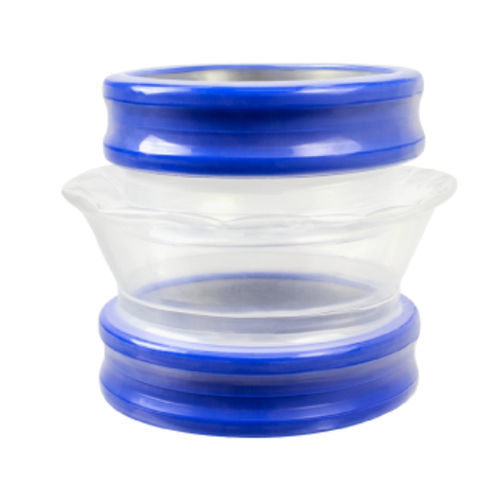

Round bellows

thermoplastic

polyurethane alloy Seeflex 040E, making them very strong and flexible, so they won't fracture as a result of constant flexing. The shape of the Weighing Bellows is ideal for preventing vibration transmission between equipment, minimising any transfer that can affect weighing or scales downstream. Snap-fit connector and spigot design ensure fast, accurate installation every time the connector is removed and replaced. Application Designed for applications where precise weighing is required, e.g. loss-in-weight feeders & dosing equipment. Key Features Prevents force transfer on sensitive weighing equipment Superior wear resistance - won't tear or rip Shape prevents residual product build-up for accurate weighing 3A, USDA, EC and ATEX compliant Physical properties Colour Transparent Construction/ Finish Gloss/Gloss Wall Thickness (+/- 10%) 0.9 mm / 1/32 inch base section. Thinner wall section in formed profile. Breathable No Hardness (Shore A) 90 Dust tight? Yes Applicable Connector Materials Seeflex 040E Operating Conditions Max. Operating Temp 86ºC / 176ºF Operating Temp Range - 25 to 80°C / - 13 to 176°F Surge Temp 100°C / 212°F Low Temp / Flexibility Good Surface Resistivity (0hms)* 1010 (Tested to ASTMD-257) Air Permeability No Vibration Yes Oscillation No Compression No Certification and Compliance FDA and USDA FDA 21 CFR 177.1680 & 177.2600 and USDA 3A Certified Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting. EU Approved (EC) 1935/2004, 2023–2006 & 10/2011 Atex Certified Approved for all dust explosion hazardous areas. Some restrictions apply.
