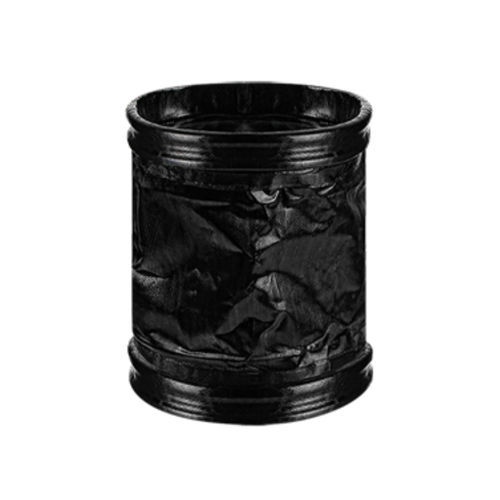

Chemical product pipe Teflex NP Black

PTFEhigh-temperaturefor the food industry

A pure PTFE flexible BFM® connector capable of running continuously at 300ºC (572ºF) temperatures, food grade and can be used across the full pH scale for caustic or acid products. A pure PTFE connector capable of running at both low and high temperatures, and can be used across the full pH scale. Teflex NP Black also offers excellent surface resistivity - 106. Key Features Can be used on products across the full pH scale Designed to dissipate electrical charge - 106 Physical properties Colour Black Construction/ Finish Multi-layer film Wall Thickness (+/- 10%) 0.23mm / 1/64” Weight 459 g/m2 / 13.5 oz/yd2 Breathable No Tear Strength (N/mm) 97 N / 25lbs Dust tight? Yes Maximum Number of Rings (on a single connector) 9 Operating Conditions Surge Temp 316˚C / 600˚F Low Temp / Flexibility Good Surface Resistivity (0hms)* 106 Air Permeability 0 Vibration Yes (expect shorter lifespan) Oscillation No Compression No Certification and Compliance FDA and USDA FDA 21 CFR 177.1550 & 178.3297 3A Certified The BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting. EU Approved (EC) 1935/2004 & 10/2011 Atex Certified IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply. Options Available with SS Rings? (min. length for all is 150mm) Yes - to Ø500mm = CL ≤ 1,000mm Available with Plastic Rings? (min. length for all is 150mm) No Available as Tool Release? Yes to Ø650mm Available as Tapered? No Available as a one ended Connnector? Yes Quick Access Port Option? No
