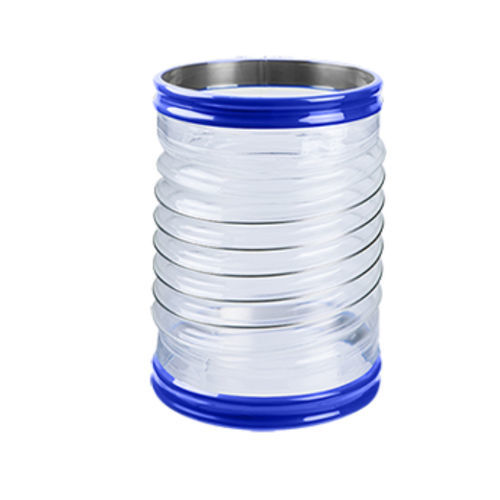

Polyurethane flexible piping Flexi-Light

foodflexibleATEX

A Flexi-Connector with slightly thinner Seeflex walls and a more The Flexi-Light Connector is made from an ether-based polyurethane with a lighter 316 stainless steel wire coil than our standard Flexi, making it ideal for applications with vertical and low-frequency /occasional horizontal movement. The Seeflex walls are also slightly thinner and the coil is much more flexible making it perfect for weigh-scale type applications, as it provides less resistance than our standard Flexi. Application Used for weigh-scale applications Ideal for bag feeders and for applications with irregular movement Key Features Very lightweight and flexible CIP Safe Ideal for applications with vertical movement Physical properties Construction/ Finish Gloss/Gloss Wall Thickness (+/- 10%) 0.4mm/ 1/64 inch Breathable No Hardness (Shore A) 90 Dust tight? Yes Operating Conditions Surge Temp 105°C / 221°F Low Temp / Flexibility Good Surface Resistivity (0hms)* 1010 (Tested to ASTMD-257) Air Permeability 0 Vibration Yes Oscillation Yes Compression Yes Certification and Compliance FDA and USDA FDA 21 CFR 177.1680, 175.105 (adhesives) & 177.2600 and USDA 3A Certified Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting. EU Approved (EC) 1935/2004, 2023–2006 & 10/2011 Atex Certified IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply. Dimensions Wire Coil Diameter 1.6mm / 1/16 inch Compression Ratio of Coil Section (Approx.) 4 to 1 Options Available with SS Rings? (min. length for all is 150mm) No
