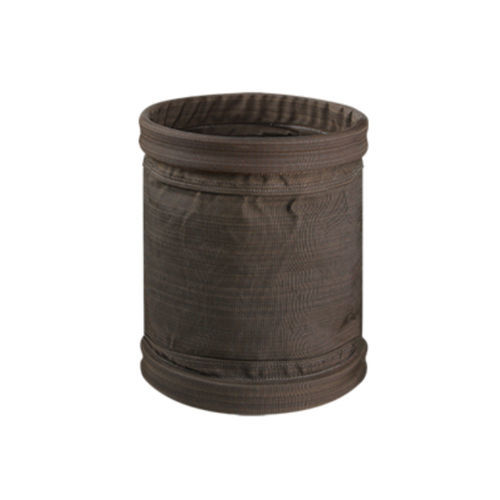

Chemical product flexible piping Teflex Woven

PTFEhigh-temperaturefood

Pure woven PTFE; can be used in high temperature applications to 260°C / 500°F and with caustic or acid products.Compliant with: FDA 21 CFR 177.1550. Teflex Woven is made from pure woven PTFE and can be used in high temperature applications and with either caustic or acid products. Application Can be used on products across the full pH scale i.e. caustic and acid products will not effect PTFE. Capable of running at high temperatures – continuously operating at 260°C / 500°F with short term surges at 280°C / 536°F. Key Features Can be used on products across the full pH scale Physical properties Colour Natural (dark brown) Construction/ Finish Basket weave Wall Thickness (+/- 10%) 0.5mm / 1/64 inch Weight 678 g/m2 / 20 oz/yd2 Breathable Yes Minimum Tensile Strength (kgf/25mm) (measured as a force over a 25mm wide Ravel Strip) Warp 90 Filling 100 (Test Standard: ASTM D5035). (measured as a force over a 25mm wide Ravel Strip) Ultimate Elongation 55 (Test Standard: ASTM C5035 Dust tight? No Maximum Number of Rings (on a single connector) 10 Operating Conditions Surge Temp 280°C / 536°F Low Temp / Flexibility Good Air Permeability 0.3 (cm3/cm2/sec at 125Pa) / 0.50 (ft3/ft2/sec at 0.5 inch wg) Vibration Yes Oscillation Yes Compression Yes Certification and Compliance FDA and USDA PTFE is compliant with FDA 21 CFR 177.1550, 178.3297 3A Certified The BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting. Atex Certified IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply. Options Available with SS Rings? (min. length for all is 150mm) Yes - to Ø500mm = CL ≤ 1,500mm
