Bulk material flexible piping Flexi-Earthed

polyurethanefoodATEX

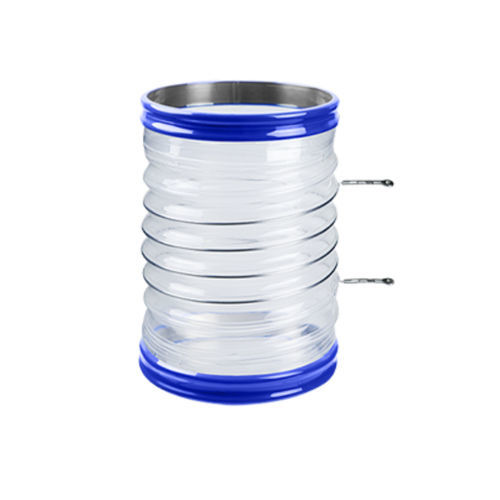

Flexi-Earthed connector is made from an ether based polyurethane with a 316 stainless steel wire coil and terminal lugs at each end for added ATEX security. The Flexi-Earthed connector is made from an ether-based polyurethane with a 316 stainless steel wire coil and terminal lugs at each end. Application Ideal for applications with vertical movement or compression Used for bag feeders, filling heads or bulk bag fillers Allows more direct earthing where there is heightened explosion risk concern Key Features Terminal lugs attach to earthing cables at each end to provide maximum safety CIP safe, excellent microbial resistance Physical properties Construction/ Finish Gloss/Gloss Wall Thickness (+/- 10%) 0.60mm / 1/32 inch (100 – 200mm / 4 – 8 inch Dia) ; 0.70mm / 1/32 inch (250 – 300mm/10 – 12 inch Dia) Breathable No Hardness (Shore A) 90 Tensile Strength (MPa) 34 Tear Strength (N/mm) 96 Dust tight? Yes Operating Conditions Surge Temp 105°C / 221°F Low Temp / Flexibility Good Surface Resistivity (0hms)* 1010 (Tested to ASTMD-257) Air Permeability 0 Vibration Yes Oscillation Yes (subject to length and movement restrictions) Compression Yes Certification and Compliance FDA and USDA FDA 21 CFR 177.1680, 175.105 (adhesives) and 177.2600 and USDA 3A Certified Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting. EU Approved (EC) 1935/2004, 2023–2006 & 10/2011 Atex Certified IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply. Options Available with SS Rings? (min. length for all is 150mm) No
