Bulk material flexible piping Flexi

polyurethanethermoplasticfood

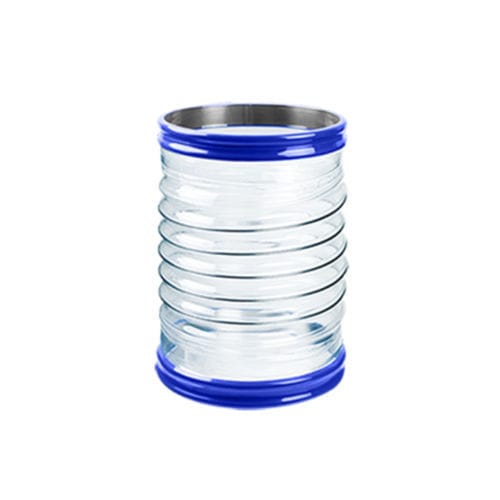

Flexi Connector is made from an ether-based polyurethane with a fully encased 316 stainless steel wire coil. Ideal for compression applications like bag feeders, filling heads or bulk bag fillers. The Flexi-Connector is made from an ether-based polyurethane with a 316 stainless steel wire coil. Ideal for bag feeders, filling heads or bulk bag fillers. Application Used for vertical movement/compression applications Ideal for bulk bag loading and filling Key Features Encased wire coil keeps connector open under compression CIP Safe Ideal for applications with vertical movement Physical properties Construction/ Finish Gloss/Gloss Wall Thickness (+/- 10%) 0.60mm / 1/32 inch (100 – 200mm / 4 – 8 inch Dia) ; 0.70mm / 1/32 inch (250 – 300mm/10 – 12 inch Dia) Breathable No Hardness (Shore A) 90 Tensile Strength (MPa) 34 Tear Strength (N/mm) 96 Dust tight? Yes Operating Conditions Surge Temp 105°C / 221°F Low Temp / Flexibility Good Surface Resistivity (0hms)* 1010 (Tested to ASTMD-257) Air Permeability 0 Vibration Yes Oscillation Yes (subject to length and movement restrictions) Compression Yes Certification and Compliance FDA and USDA FDA 21 CFR 177.1680, 175.105 (adhesives) & 177.2600 and USDA 3A Certified Manufactured from 3A 20-27 certified Seeflex Material and the BFM® cuff and spigot system is a 3A certified 63-04 sanitary fitting. EU Approved (EC) 1935/2004, 2023–2006 & 10/2011 Atex Certified IBExU tested. Approved for all dust explosion hazardous areas. Some restrictions apply. Options Available with SS Rings? (min. length for all is 150mm) No Available with Plastic Rings? (min. length for all is 150mm) No Available as Tool Release? Yes
