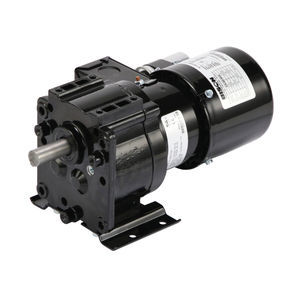

Parallel-shaft gear-motor 100 series
DCpermanent magnetAC

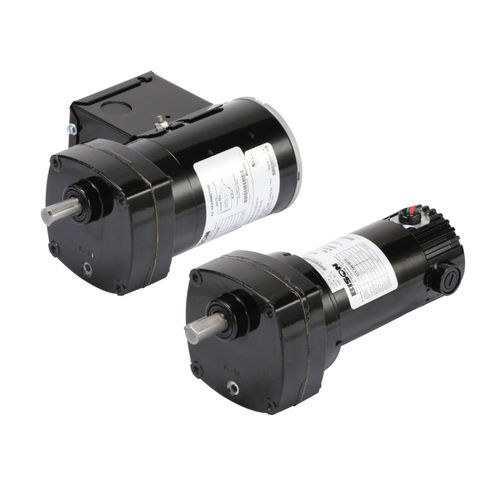

Parallel-shaft gear-motor - 100 series - BISON - DC / permanent magnet / AC
Parallel-shaft gear-motor - 100 series - BISON - DC / permanent magnet / AC
Add to favorites
Compare this product

Characteristics

Motor type
DC, permanent magnet, AC
Type
helical gear
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Power
10 W...50 W
Voltage
24 V, 12 V, 115 V, 90 V, 380 V
Torque
1 - 5 Nm, 5 - 10 Nm, 10 - 20 Nm
Number of stages
three-stage, single-stage, four-stage
Product applications
industrial, for the food industry, for the packaging industry, for machines, for agricultural applications
Other characteristics
compact, precision, in-line
Gear ratio

Min.: 5 unit

Max.: 1,369 unit

Description

Motor Specifications Enclosure: TENV(DC), Open 1/80 & 1/10 HP, TENV 1/20 HP, TEFC 1/12 HP(AC) Insulation: Class F (DC), Class B Minimum (AC) Bearings: Ball Rotation: Reversible Motor Type: Permanent Magnet (DC), Permanent Split Capacitor - Capacitor Included (AC) Gearhead Specifications Finish: Gloss Black Powder Coat Mounting: All Positions Shafts: Hardened Steel Bearings: Needle Output Lubrication: Lifetime Oil Bath, Sealed and Gasketed Housing: Precision Machined Die Cast Aluminum Gearing: 1st Stage Helical, All Other Stages Powdered Metal or Steel Duty Rating: Continuous Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. Continuous Duty Motors rated for continuous duty operation. Customizable Collaborate with Bison engineers to customize and seamlessly integrate the device into your end product, ensuring the perfect fit. Markets & Applications Agricultural Equipment Construction Equipment Food & Beverage Preparation Material Handling Equipment Packaging Equipment
