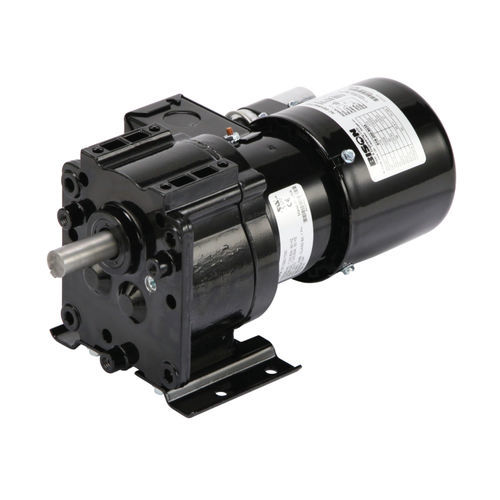

AC gear-motor 200 series
helicalparallel-shaftsolid-shaft

AC gear-motor
AC gear-motor
AC gear-motor
AC gear-motor
AC gear-motor
AC gear-motor
AC gear-motor
AC gear-motor
AC gear-motor
AC gear-motor
Add to favorites
Compare this product


Characteristics

Motor type
AC
Type
helical
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Power
100 W...500 W, 50 W...100 W
Torque
1 - 5 Nm, 5 - 10 Nm, 20 - 50 Nm
Product applications
industrial
Other characteristics
compact, precision, two-stage, three-stage
Gear ratio

Min.: 5 unit

Max.: 215.6 unit

Description

For tight-spaces requiring big power, Bison’s 100mmAC (4” dia.), 1/8 HP motors offer larger motor power in 30% less volume. Its speed range is 8-340 RPM and its torque range is 16-350 in-lbs.
