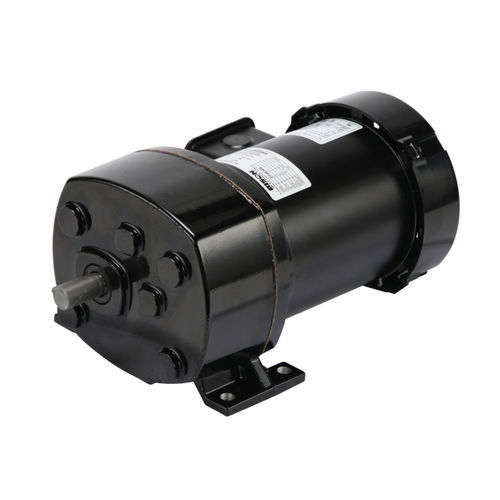

Parallel-shaft gearmotor 400 Series
ACgear trainsolid-shaft

Parallel-shaft gearmotor - 400 Series - BISON - AC / gear train / solid-shaft
Parallel-shaft gearmotor - 400 Series - BISON - AC / gear train / solid-shaft
Add to favorites
Compare this product

Characteristics

Motor type
AC
Type
gear train
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Power
100 W...500 W
Voltage
115 V, 460 V, 380 V
Torque
20 - 50 Nm, 10 - 20 Nm, 5 - 10 Nm, 50 - 100 Nm, 100 - 200 Nm
Product applications
industrial, for the food industry, for agricultural applications, for the packaging industry
Other characteristics
precision, in-line
Gear ratio

Min.: 6 unit

Max.: 316 unit

Description

Motor Specifications Enclosure: TEFC Insulation: Class B Minimum Bearings: Ball Rotation: Reversible Motor Type: Split Phase and Three Phase Gearhead Specifications Finish: Gloss Black Powder Coat Mounting: Face (Any Angle) or baseplate Shafts: Hardened Steel Bearings: Needle and ball on output shaft Lubrication: Lifetime Oil Bath, Sealed and Gasketed Housing: Precision Machined Die Cast Aluminum Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical Metal, Balance Spur Duty Rating: Continuous Continuous Duty Motors rated for continuous duty operation. High Torque Output Optimized gear train provides high levels of torque for the most demanding applications. Markets & Applications Agricultural Equipment Construction Equipment Food & Beverage Preparation Material Handling Equipment Packaging Equipment

Catalogs

Other BISON products

Inline Parallel Shaft Gearmotors
