Parallel-shaft gearmotor 175 Series
DCACpermanent magnet

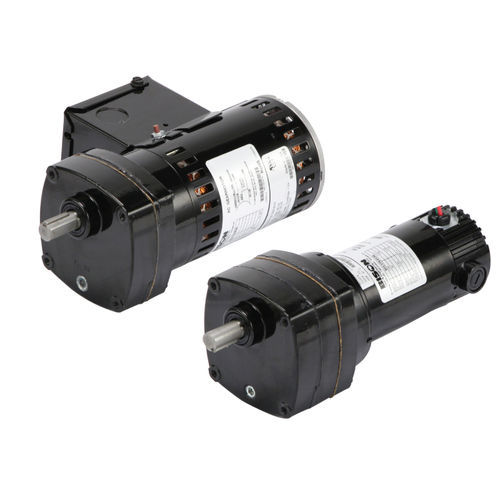

Parallel-shaft gearmotor - 175 Series - BISON - DC / AC / permanent magnet
Parallel-shaft gearmotor - 175 Series - BISON - DC / AC / permanent magnet
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Motor type
DC, AC, permanent magnet
Type
helical gear
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Power
10 W...50 W, 50 W...100 W
Voltage
380 V, 115 V, 460 V, 90 V
Torque
10 - 20 Nm, 1 - 5 Nm, 5 - 10 Nm
Product applications
industrial, for the food industry, for agricultural applications, for the packaging industry
Other characteristics
compact, precision, in-line
Gear ratio

Max.: 1,369 unit

Min.: 5 unit

Description

1-360 RPM · 17-170 in-lbs · 1/20 - 1/10 HP · AC & DC options available Motor Specifications Enclosure: TENV(DC), Open 1/10 HP, TENV 1/20 HP, TEFC 1/12 HP(AC) Insulation: Class F (DC), Class B Minimum (AC) Bearings: Ball Rotation: Reversible Motor Type: Permanent Magnet (DC), Permanent Split Capacitor and three phase - Capacitor Included on PSC (AC) Gearhead Specifications Finish: Gloss Black Powder Coat Mounting: All Positions Shafts: Hardened Steel Bearings: Needle Output Lubrication: Lifetime Oil Bath, Sealed and Gasketed Housing: Precision Machined Die Cast Aluminum Gearing: 1st Stage Helical, All Other Stages Heat Treated steel or Powdered Metal Duty Rating: Continuous Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. Continuous Duty Motors rated for continuous duty operation. Markets & Applications Agricultural Equipment Construction Equipment Food & Beverage Preparation Material Handling Equipment Packaging Equipment
