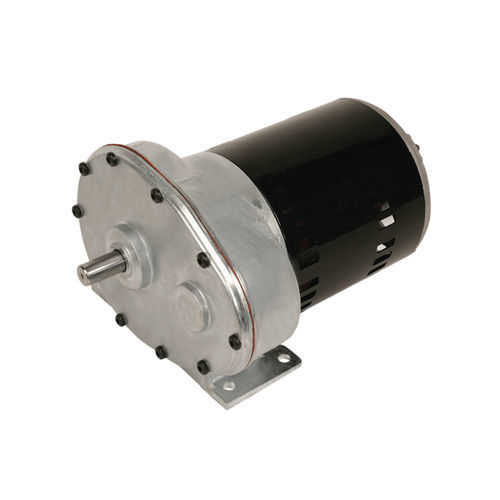

Parallel-shaft gearmotor 040 Series
ACgear trainsolid-shaft

Parallel-shaft gearmotor - 040 Series - BISON - AC / gear train / solid-shaft
Parallel-shaft gearmotor - 040 Series - BISON - AC / gear train / solid-shaft
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Motor type
AC
Type
gear train
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Power
100 W...500 W
Voltage
115 V
Torque
20 - 50 Nm, 50 - 100 Nm
Product applications
industrial, for the food industry, for agricultural applications, for the packaging industry
Other characteristics
compact, precision, in-line
Gear ratio

19 unit, 28 unit, 56 unit

Description

31-92 RPM · 287-800 in-lbs · 1/2 HP · AC option available Motor Specifications Enclosure: ODP Insulation: Class B Minimum Bearings: Ball Rotation: Reversible Motor Type: Split Phase Gearhead Specifications Finish: Unpainted Mounting: All Positions Shafts: Plain Bearings: Ball Lubrication: Grease Housing: Precision Machined Die Cast Zinc Gearing: Phenolic High Speed and Steel Duty Rating: Continuous Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. Continuous Duty Motors rated for continuous duty operation. Markets & Applications Agricultural Equipment Construction Equipment Food & Beverage Preparation Material Handling Equipment Packaging Equipment
