Parallel-shaft gearmotor 300 Series
DCpermanent magnetgear train

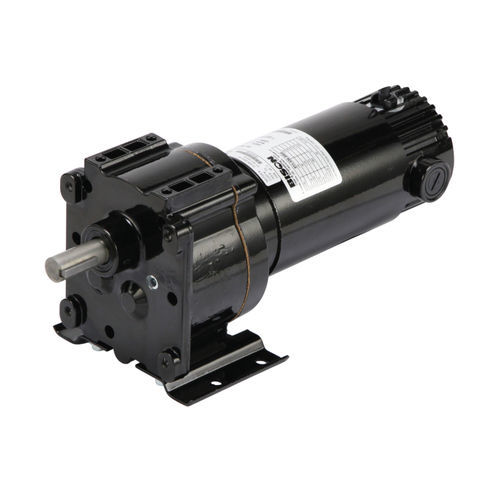

Parallel-shaft gearmotor - 300 Series - BISON - DC / permanent magnet / gear train
Parallel-shaft gearmotor - 300 Series - BISON - DC / permanent magnet / gear train
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Motor type
DC, permanent magnet
Type
gear train
Shaft orientation
parallel-shaft
Shaft configuration
solid-shaft
Power
100 W...500 W, 10 W...50 W, 50 W...100 W
Voltage
24 V, 12 V, 90 V
Torque
20 - 50 Nm, 10 - 20 Nm, 1 - 5 Nm, 5 - 10 Nm
Product applications
industrial, for the food industry, for agricultural applications, for the packaging industry
Other characteristics
compact, precision, in-line
Gear ratio

Max.: 329 unit

Min.: 5 unit

Description

6-360 RPM · 19-350 in-lbs · 1/20 - 1/4 HP · DC option available Motor Specifications Enclosure: TENV Insulation: Class F Bearings: Ball Rotation: Reversible Motor Type: PMDC Gearhead Specifications Finish: Gloss Black Powder Coat Mounting: Face (Any Angle) or baseplate Shafts: Hardened Steel Bearings: Needle With Thrust Ball Lubrication: Lifetime Oil Bath, Sealed and Gasketed Housing: Precision Machined Die Cast Aluminum Gearing: Hardened Steel, AGMA Class 9. Duty Rating: Continuous Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. Continuous Duty Motors rated for continuous duty operation. Markets & Applications Agricultural Equipment Construction Equipment Food & Beverage Preparation Material Handling Equipment Packaging Equipment
