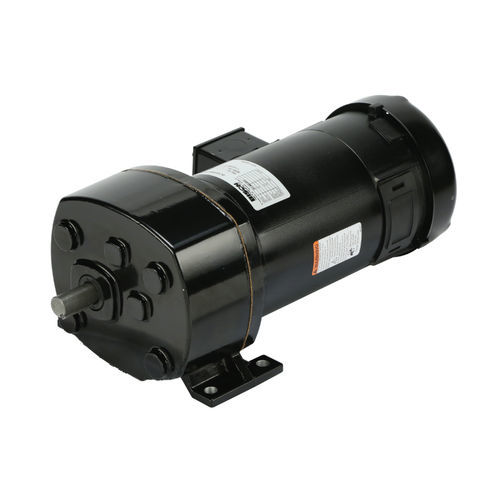

Parallel-shaft gearmotor 483 SeriesDCpermanent magnetspur
Add to favorites
Compare this product
Characteristics
- Motor type
- DC, permanent magnet
- Type
- helical gear, spur
- Shaft orientation
- parallel-shaft
- Shaft configuration
- solid-shaft
- Power
- 100 W...500 W
- Voltage
- 90 V
- Torque
- 20 - 50 Nm, 10 - 20 Nm, 50 - 100 Nm, 100 - 200 Nm
- Product applications
- industrial, for the food industry, for agricultural applications, for the packaging industry
- Other characteristics
- precision, in-line
- Gear ratio
Min.: 12 unit
Max.: 196 unit
Description
9-148 RPM · 101-1112 in-lbs · 1/4 - 1/2 HP · DC option available
Motor Specifications
Enclosure: 1/4 HP TENV, 1/2 HP TEFC
Insulation: Class B
Bearings: Ball
Rotation: Reversible
Motor Type: PMDC
Gearhead Specifications
Finish: Gloss Black Powder Coat
Mounting: Face (Any Angle) or baseplate
Shafts: Hardened Steel
Bearings: Needle and Thrust Ball, Ball Bearing Outboard
Lubrication: Lifetime Oil Bath, Sealed and Gasketed
Housing: Precision Machined Die Cast Aluminum
Gearing: Hardened Steel, AGMA Class 9. 1st-Stage Helical, Balance Spur Steel.
Duty Rating: Continuous
Continuous Duty
Motors rated for continuous duty operation.
High Torque Output
Optimized gear train provides high levels of torque for the most demanding applications.
Markets & Applications
Agricultural Equipment
Construction Equipment
Food & Beverage Preparation
Material Handling Equipment
Packaging Equipment
