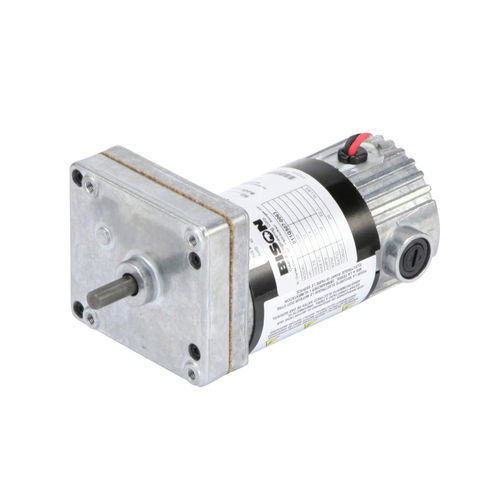

Parallel-shaft gearmotor - 050 Series - BISON

Characteristics

Motor type

DC, AC, permanent magnet

Type

gear train

Shaft orientation

parallel-shaft

Shaft configuration

solid-shaft

Power

10 W...50 W

Voltage

12 V, 380 V, 115 V, 90 V

Torque

1 - 5 Nm, 5 - 10 Nm

Product applications

industrial, for the food industry, for agricultural applications, for the packaging industry

Other characteristics

compact, precision, in-line

Gear ratio

Max.: 491 unit

Min.: 10 unit

Description

4-181 RPM · 12-50 in-lbs · 1/30 - 1/20 HP · AC & DC options available Motor Specifications Enclosure: TENV Insulation: Class F (DC), Class B Minimum (AC) Bearings: Ball Rotation: Reversible Motor Type: Permanent Magnet (DC), Permanent Split Capacitor - Capacitor and Junction Box Included (AC) Gearhead Specifications Finish: Unpainted Mounting: All Positions Shafts: Hardened Steel Bearings: Porous Bronze Sleeve Lubrication: Grease Housing: Precision Machined Die Cast Zinc Gearing: Powdered Metal Duty Rating: Continuous Compact Design Delivers optimal speed and torque in a small package. Perfect for applications that have limited space. Continuous Duty Motors rated for continuous duty operation. Markets & Applications Agricultural Equipment Construction Equipment Food & Beverage Preparation Material Handling Equipment Packaging Equipment
