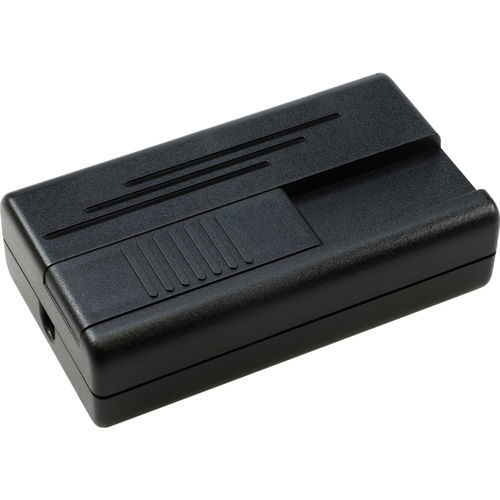

Dimmer T25.10

Product overview
The EHMANN T25.10 cord dimmer is a leading-edge (phase-cut) controller for dimmable incandescent and halogen lamps. Designed for use with magnetic transformers for low-voltage halogen, it supports a wide power range and offers slider operation for hand or foot control. IP20 rated and supplied in individual packaging.

Technical data

• Brand: EHMANN
• Model: T25.10
• SKU: 2521x0000
• EAN (GTIN-13): 4012096252108
• Supply voltage: 230 V
• Frequency: 50 Hz
• Power range: 20–500 W/VA
• Control type: leading-edge (phase-cut)
• Operation: slider (hand and foot operation)
• Ingress protection: IP20
• Protection: short-circuit/overload protection via fine fuse
• Protective earth connection: possible
• Color: Black

Safety and warnings

• For indoor use only in dry, enclosed spaces.
• Do not cover the dimmer; covering may cause overheating and fire risk.
• Avoid operation in adverse environments (relative humidity >80%, presence of moisture, ambient temperatures above 50°C, solvents, flammable gases, dust or vapors).
• Do not pour liquids onto the unit. In case of liquid ingress, unplug immediately and consult qualified personnel.
• Do not operate the device if it shows transport or handling damage. Unauthorized opening or modification voids the warranty and may be hazardous.
• Only qualified electrical personnel may open or service the device after it has been disconnected from mains.

Scope of supply

• Single unit in individual packaging
