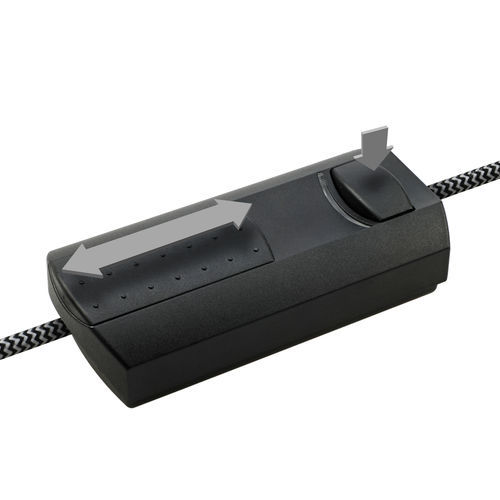

LED dimmer 2620x0750

Product information
3 - 150 W LED power
20 - 500 W/VA total power
230V~, 50 Hz rated voltage

Features

• Suitable for dimmable LED lamps, incandescent, HV and LV halogen lamps with magnetic transformer
• Low-noise operation
• Adjustment option to optimize flicker-free dimming of LED lamps at the minimum range
• Short-circuit / overload protection via fine fuse
• No standby consumption
• Protective earth connection possible
• Multiple connection options allow use as intermediate or end device

Quality & Service
EHMANN advantage - 100% quality control, 5 years warranty, German manufacturer
EHMANN service - LED lamp recommendation available anytime via printed QR code
EHMANN quality - precise workmanship and reliable operation

Safety and warnings

• The cord dimmer must only be used in dry, enclosed rooms.
• Do not operate the cord dimmer covered. Risk of heat accumulation which may cause damage or fire.
• Avoid operation under adverse conditions (e.g. relative humidity over 80%, wetness, ambient temperatures above 50 °C, solvents, flammable gases, dust, fumes).
• Do not pour liquids over the cord dimmer. If liquid contacts the device, unplug and take out of service.
• Failure to follow the operating instructions may result in device damage, fire or other hazards. Do not operate if externally damaged.
• Opening the device or unauthorised interventions void the warranty. Repairs must be carried out by qualified electricians only.

Characteristics / Technical specifications

• Model: T26.07.50
• Product name: LED cord dimmer T26.07.50 black
• Item number (SKU): 2620x0750
• EAN / GTIN-13: 4012096005100
• LED power range: 3 - 150 W
• Total power range: 20 - 500 W/VA
• Rated voltage: 230 V~, 50 Hz
• Short-circuit / overload protection: fine fuse
• Standby consumption: no standby consumption
• Connection: protective earth connection possible; usable as intermediate and end device
• Weight: 0.212 kg
• Dimensions: Height 59 mm, Width 130 mm, Depth 35 mm
• Warranty: 5 years
• Brand: EHMANN
