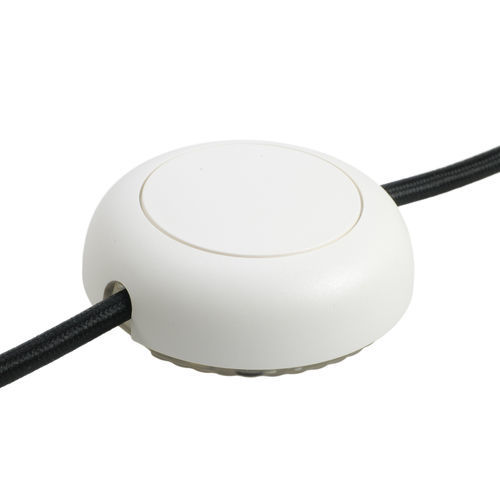

LED dimmer T24.08

Product information

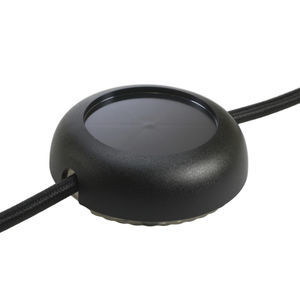

The EHMANN T24.08 is a cord-mounted LED dimmer for inline control of LED lamps and compatible loads. Designed for professional installations where compact, silent and reliable dimming is required.

Features

• LED multi-dimmer for manufacturer- and type-independent LED dimming
• Suitable for dimmable filament LEDs, LED drivers, LED lamps, incandescent and HV halogen lamps
• SILENT TECHNOLOGY — completely silent operation
• Adjustments to minimise flicker at minimum and maximum brightness
• Full-surface push-dim switch for on/off and dimming
• Electronic short-circuit/overload protection and over-temperature cut-out
• Soft-start and Memory-Function Plus (retains setting after complete power loss)
• Subtle orientation light for locating the control in darkness
• Protective earth connection available

Safety and warnings

• For indoor, dry and enclosed locations only.
• Do not cover the dimmer (risk of heat build-up).
• Avoid operation under adverse conditions (relative humidity >80%, moisture, ambient temperatures >50°C, solvents, flammable gases, dust, vapours).
• Do not pour liquids over the dimmer. If exposed to liquids, disconnect mains and take the device out of service.
• Failure to follow instructions may cause damage, fire or other hazards.
• Do not operate if the device shows transport or impact damage; disconnect and stop use.
• Internal live parts may be exposed if opened; servicing only by qualified personnel after isolation from mains.

Manufacturer / Quality
EHMANN advantage — 100% quality control, 5-year warranty, German manufacturer
EHMANN quality — high-grade workmanship and reliable function

Technical specifications

• Model: T24.08
• Colour: White
• Phase control: Leading edge (phase-cut)
• LED power: 3 - 55 W
• Power (load range): 5 - 150 W/VA
• Rated voltage: 230V~, 50 Hz
• Weight: 0.123 kg
• Dimensions (HxWxD): 75 mm x 75 mm x 27 mm
• Safety features: Short-circuit/overload protection, over-temperature cut-out
• Functions: SILENT TECHNOLOGY, Soft-Start, Memory-Function Plus, Orientation light
