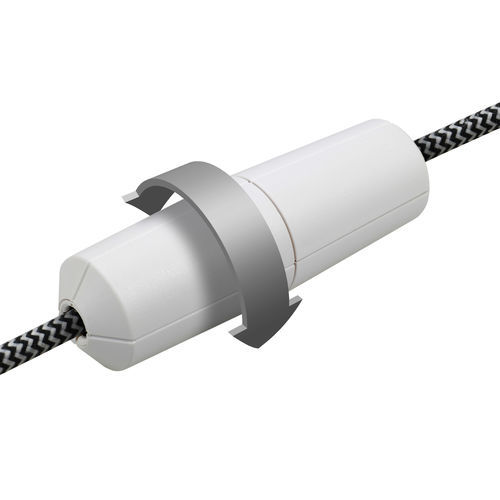

LED dimmer T28.08

Product information
3 - 35 W LED power
5 - 100 W/VA load capacity
230V~, 50 Hz rated voltage

• LED multi-dimmer for reliable dimming independent of LED manufacturer and type
• Suitable for dimmable filament LEDs, LED drivers, LED lamps, incandescent and high-voltage halogen lamps
• SILENT TECHNOLOGY – completely silent operation
• Adjustment options for flicker-free dimming of LED lamps at minimum and maximum levels
• Comfortable operation via rotary twist-dim control
• Electronic short-circuit and overload protection plus thermal fuse
• Memory-Plus function retains setting even after complete power loss (e.g. switched outlet)
• No standby consumption and full load disconnection
• Free positioning option due to symmetrical housing design

EHMANN features
EHMANN Advantage - 100% quality control, 5-year warranty, German manufacturer
EHMANN Service - LED lamp recommendation retrievable at any time via printed QR code
EHMANN Quality - Premium workmanship and reliable operation

Technical specifications

• Color: Black
• LED power: 3 - 35 W
• Power: 5 - 100 W/VA
• Phase control: leading-edge (phase-cut)
• Rated voltage: 230V~, 50 Hz
• Weight: 0.085 kg
• Dimensions (H x W x D): 33 mm x 33 mm x 110 mm
• GTIN / EAN: 4012096005063
• Article number (SKU): 2820x0800
