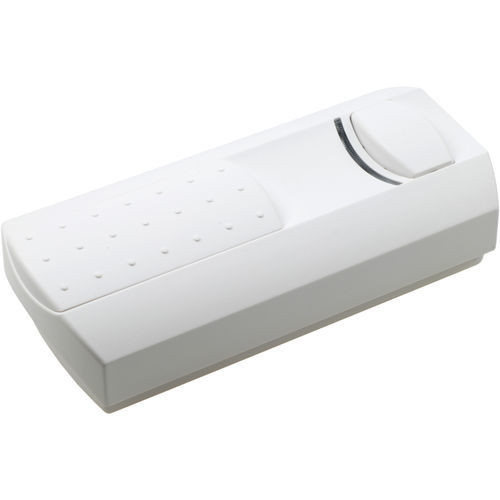

LED dimmer 2660x0750

Product information
LED power range: 3 - 150 W
Other load range: 20 - 500 W/VA
Rated voltage: 230V~, 50 Hz

• Suitable for dimmable LED lamps, incandescent, HV and LV halogen lamps with magnetic transformer
• Low-noise operation
• Optimization for flicker-free dimming of LED lamps at minimum level
• Short-circuit/overload protection via fine fuse
• No standby consumption
• Protective earth connection possible
• Can be installed as intermediate or end device thanks to different connection options

EHMANN notes
EHMANN advantage - 100% quality control, 5-year warranty, German manufacturer
EHMANN service - LED lamp recommendations available anytime via printed QR code
EHMANN quality - High-quality workmanship and reliable function

Safety and warnings
DANGER! Risk of fatal electric shock or fire. Installation, wiring and mounting must be performed only by a qualified electrician. All technical instructions do not exempt from the rule that work on the 230V mains must be carried out only by qualified personnel.
The technical data and country-specific regulations (e.g., DIN VDE) must be observed. Common safety rules such as the '5 safety rules' must be followed.
CAUTION! Failure to follow the operating instructions may cause damage to the device, fire or other hazards. Damaged devices must not be put into operation and must be taken out of service immediately. Opening the device or other interventions void the warranty.
Operate the dimmer only indoors in dry locations. Avoid operation under adverse environmental conditions (e.g., relative humidity above 80%, ambient temperatures above 35°C, flammable gases, dust, vapors). For permanent use, operate only with cover.

Technical specifications

• LED power range: 3 - 150 W
• Other load range: 20 - 500 W/VA
• Rated voltage: 230V~, 50 Hz
• Application: dimmable LED lamps, incandescent, HV and LV halogen lamps (with magnetic transformer)
• Operation: low-noise
• Functions: optimization for flicker-free dimming at minimum range
• Protection: short-circuit/overload protection via fine fuse
• Consumption: no standby consumption
• Connections: protective earth connection possible
• Installation: can be used as intermediate or end device (different connection options)
• Warranty: 5 years
• Article number: 2660x0750
• EAN/GTIN13: 4012096006039
