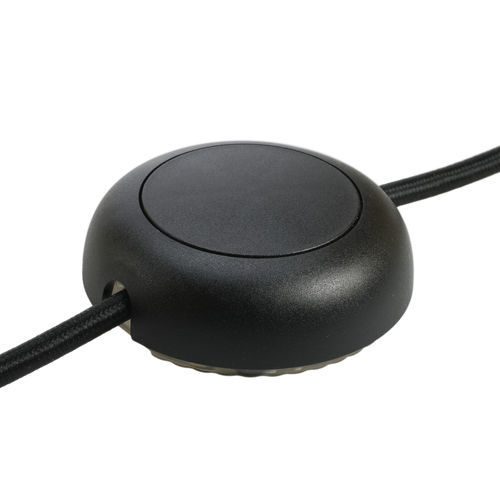

LED dimmer 2420x0800

Product information
3 - 55 W LED power
5 - 150 W/VA load range
230V~, 50 Hz nominal voltage

Features

• LED multidimmer for reliable dimming regardless of LED manufacturer and type
• Suitable for dimmable filament LEDs, LED drivers, LED lamps, incandescent and HV halogen lamps
• SILENT TECHNOLOGY – completely noiseless operation
• Optimization options for flicker-free dimming at minimum and maximum ranges
• Comfortable full-surface push operation (push-dim)
• Electronic short-circuit/overload protection and over-temperature protection
• Soft-Start & Memory-Function Plus (retains setting even after complete power loss, e.g. switched socket)
• Discreet orientation light for easy locating in the dark
• Protective earth (ground) connection possible

Additional information
EHMANN advantage - 100% quality control, 5 years warranty, German manufacturer
EHMANN service - LED lamp recommendation available at any time via printed QR code
EHMANN quality - high-quality workmanship and reliable function

Technical characteristics
Color: Black
Housing: Plastic
Phase control: Leading-edge (phase-cut)
Control type: Push button

Technical specifications

• Model: T24.08
• LED power range: 3 - 55 W
• Other load range: 5 - 150 W/VA
• Nominal voltage: 230 V~, 50 Hz
• Protection functions: Short-circuit/overload protection, over-temperature protection
• Special features: Silent Technology (noiseless), Soft-Start, Memory-Function Plus, Orientation light
• Color: Black
• Housing material: Plastic
• Phase control: Leading-edge
• Control type: Push button
• Weight: 0.12 kg
• Dimensions (H x W x D): 75 mm x 75 mm x 27 mm
• EAN: 4012096006015
• Article number / SKU: 2420x0800
