LED dimmer T21.07.09

Product description
3 - 35 W LED power
7 - 110 W/VA power
230V~, 50 Hz nominal voltage

Main features

• Suitable for dimmable LED lamps, incandescent, HV- and LV-halogen lamps with magnetic transformer
• Adjustment option for flicker-free dimming of LED lamps at the minimum range
• No standby consumption thanks to a true on/off switch
• Short-circuit/overload protection via fine fuse

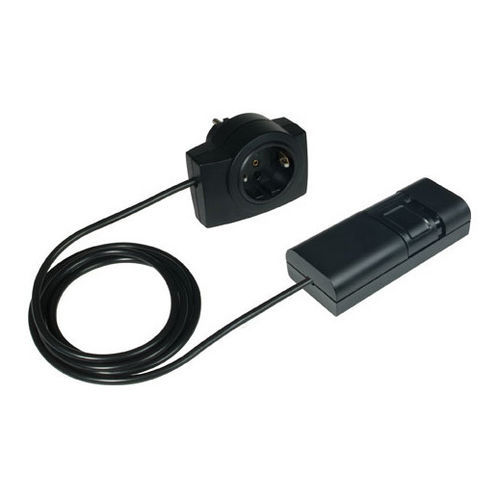

• Approx. 1.8 m connection cable with permanently attached protective contact plug
• Protective contact plug with enhanced touch protection using a shutter
• Complete unit – Plug & Play

EHMANN notes
EHMANN advantage - 100% quality control, 5-year warranty, German manufacturer
EHMANN service - LED lamp recommendations always available via printed QR code
EHMANN quality - High-quality workmanship and reliable function

Product features (table)
Color: Black
Housing: Plastic
LED power: 3 - 35 W LED
Phase control: Leading edge (phase-cut)
Control type: Rotary knob

Characteristics / Technical specifications

• Model: T21.07.09
• EAN (GTIN-13): 4012096003526
• Weight: approx. 0.37 kg
• Dimensions (H x W x D): 45 mm x 105 mm x 25 mm
• Nominal voltage: 230 V~, 50 Hz
• LED power range: 3 - 35 W
• General power range (e.g. halogen): 7 - 110 W/VA
• Connection cable: approx. 1.8 m with permanently attached protective contact plug
• Intermediate plug: Protective contact plug with enhanced touch protection (shutter)
• Protection functions: Short-circuit/overload protection via fine fuse
• Switch: True on/off switch (no standby consumption)
• Easy operation: Complete unit, Plug & Play
