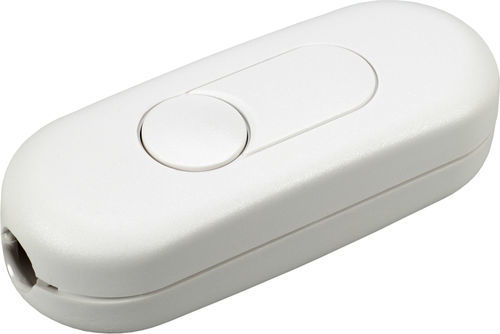

LED dimmer 2960x0900

LED dimmer - 2960x0900 - Bodo Ehmann GmbH
LED dimmer - 2960x0900 - Bodo Ehmann GmbH
LED dimmer - 2960x0900 - Bodo Ehmann GmbH - image - 2
LED dimmer - 2960x0900 - Bodo Ehmann GmbH - image - 3
Add to favorites
Compare this product

Characteristics

Applications
for LEDs

Description

Product description
  • LED universal cord dimmer for reliable dimming regardless of LED manufacturer and type
  • Suitable for dimmable filament LEDs, LED drivers, LED lamps as well as incandescent and halogen lamps
  • Leading-edge and trailing-edge operation, manually switchable
  • Suitable for international use: for 110/230 V~, 50/60 Hz networks
  • SILENT TECHNOLOGY – completely silent operation
  • Optimization options for flicker-free dimming at minimum and maximum ranges
  • Electronic short-circuit/overload protection and overtemperature protection
  • Soft-start and Memory Function Plus (retains settings even after complete power interruption, e.g., switched socket)
  • Extremely compact design
  • EHMANN advantage – 100% quality control, 5 years warranty
  • EHMANN service – LED lamp recommendation via printed QR code


Safety instructions
  • Operate only in dry and enclosed indoor spaces.
  • Do not cover the cord dimmer (risk of heat build-up and fire).
  • Avoid operation under unfavorable environmental conditions (relative humidity over 80%, wet conditions, ambient temperatures above 50 °C, solvents, flammable gases, dust, vapors).
  • Never pour liquids over the cord dimmer (risk of fire or deadly electric shock). If liquids penetrate, unplug and stop using the device.
  • Do not operate the device if externally damaged by transport or improper handling; if damaged, take it out of service immediately.
  • Opening the device voids the warranty; the device may only be opened by a qualified electrician after disconnection from mains supply.


Specifications / technical data
  • LED power: 3 – 30 W
  • Power (text): 5 – 100 W/VA
  • Additional power note in text: 5 – 80 W/VA
  • Rated voltage: 110 / 230 V~
  • Frequency: 50 / 60 Hz
  • Suitable for: dimmable filament LEDs, LED drivers, LED lamps, HV halogen and incandescent lamps
  • Operating principle: selectable leading-edge & trailing-edge
  • Actuation: On/Off/Dim via push button
  • Overtemperature protection: thermal fuse
  • Overload/short-circuit protection: electronic
  • Maximum conductor Ø: 8 mm
  • Switch-off: electronic
  • Switching cycles: > 25,000
  • Connection: screw terminals 0.5 - 1.5 mm² (flexible)
  • Duty type: S1
  • Protection class: II
  • Protection rating: IP20
  • Pollution degree: 1
