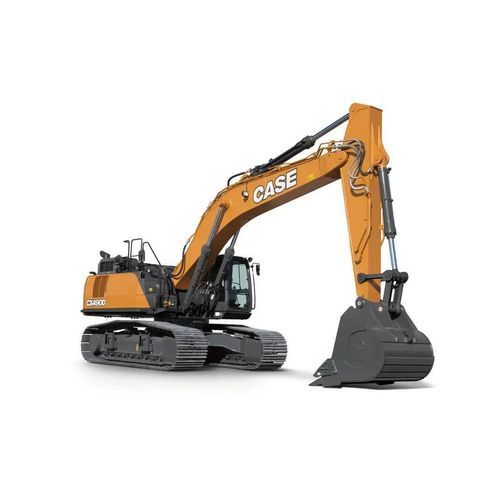

Large excavator CX490D

crawlerTier 4 - finalconstruction

Overview
The CASE CX490D is a Stage V certified crawler excavator designed for heavy-duty earthmoving, quarry and construction applications. It combines a 362 hp Isuzu engine, high bucket breakout force and selectable power modes with an intelligent hydraulic system and free-swing capability to deliver controlled, efficient digging and lifting while maximising operator comfort and uptime.

Key advantages

• High power and torque: 362 hp (270 kW) for demanding applications
• Productivity and fuel management: 3 selectable power modes to adapt performance and reduce fuel consumption
• Enhanced hydraulics: CASE Intelligent Hydraulic System and free swing for improved lifting, craning and attachment control
• Operator comfort and safety: pressurised cab, climate control, heated air-suspension seat and 7 in LED monitor

Quick specifications

• Net power: 362 hp | 270 kW
• Operating weight: 50.8 t
• Bucket breakout force: 60,700 lb (27,540 kgf)

Standard equipment - ENGINE

• Isuzu AQ-6UZ1X, six-cylinder turbocharged diesel
• Stage V / Tier 4 Final certified after-treatment: SCR, DOC, DPD
• Cooled EGR, VGT turbocharger, common-rail injection
• 500-hour engine oil change interval; 24 V electrical system

Standard equipment - HYDRAULICS

• Electronically controlled hydraulic pumps
• Selectable work modes (3 power modes)
• Free swing capability
• 5,000-hour hydraulic oil change interval; 1,000-hour hydraulic filter interval

Standard equipment - OPERATOR ENVIRONMENT

• Pressurised ROPS/FOPS cab with safety glazing
• Auto climate control (AC/heat/defrost)
• Heated high-back cloth seat with air suspension and tilt
• 7 in (180 mm) LED colour monitor with 10 programmable attachment settings
• Rear-view camera, DAB+ radio and Bluetooth

TELEMATICS

• myCASEConstruction telematics with 7-year advanced data subscription for remote monitoring and 2-way communication

Optional equipment

• Auxiliary hydraulics: single-acting, double-acting (thumb), multi-function proportional controls and low-flow proportional circuits
• Hose Burst Check Valve (HBCV) and hydraulic CWT removal device
• Alternative undercarriage options and heavy-duty booms/arms

UNDERCARRIAGE

• Standard 600 mm triple grouser steel shoes; optional 750/900 mm widths
• Full-length track chain guards and sealed links

Warranty

• Three-year / 3,000-hour full-machine factory warranty
• 7-year myCASEConstruction advanced subscription included

Compatible attachments

• Hydraulic quick coupler type G, series CB rock breakers, tilt ditching buckets, mixing buckets and heavy-duty buckets

Technical specifications

• Model: CX490D
• Brand: CASE
• Net power: 362 hp | 270 kW
• Operating weight: 50.8 t
• Bucket breakout force: 60,700 lb
• Selectable power modes: 3
• Service intervals: engine oil 500 h; hydraulic oil 5,000 h; hydraulic filter 1,000 h
